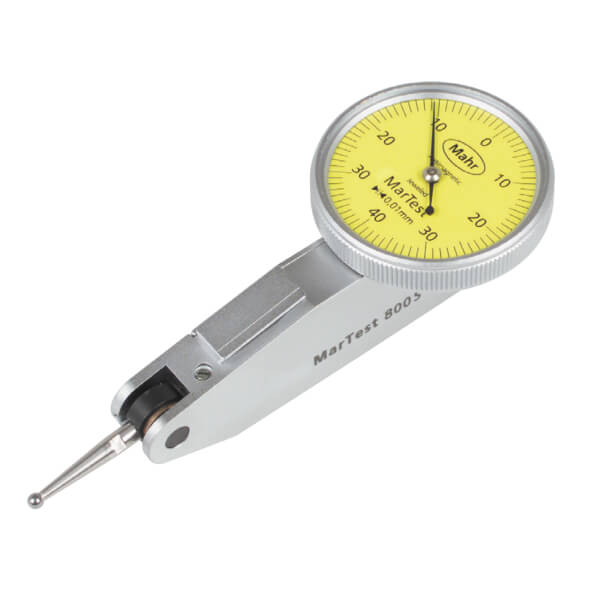

Mahr 4307250DKS ຕົວຊີ້ວັດການທົດສອບ (800 SR, ± 0.8mm)

Measuring range: ± 0.8mm

Graduation value: 0.01mm

Measuring surface: carbide

Scale diameter: 38mm

Type of dial face: 40– 0– 40

Dial color: Yellow

Measuring force N: 0.15

Range per rev.: 0.8mm

Deviation range fe µm: 10

Total deviation range fges µm: 14

Hysteresis fu µm: 4

Partial measuring span ft µm: 5

Repeatability fw µm: 3

Standard:factory standard

With calibration certificate from DAkkS

Package contains: case, instruction manual, spanner for changing the styli, stylus dia. ø 2 mm, mounting shaft 800a8

Accessories:

• Stylus ø 1.0 mm, carbide, l = 14.5 mm, type 800 ts

• Stylus ø 2.0 mm, carbide, l = 14.5 mm, type 800 ts

• Stylus ø 3.0 mm, carbide, l = 14.5 mm, type 800 ts

• Stylus ø 2.0 mm, ruby, l = 14.5 mm, type 800 tsr

• Spanner
