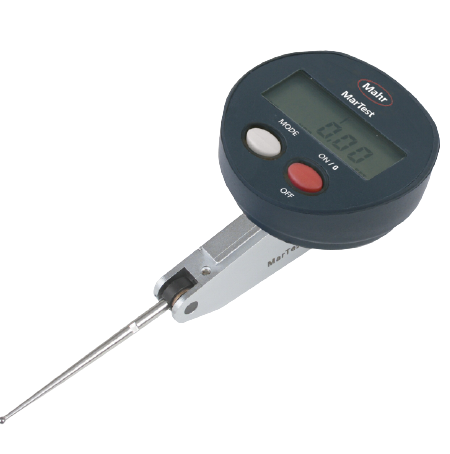

Product type: 800 EW
Measuring range: ± 0.25mm/± .010”
Graduation value: 0.001mm/.00005”
Measuring force N: 0.07
Deviation range fe µm: 10
Total deviation range fges µm: 13
Hysteresis fu µm: 7
Partial measuring span ft µm: 5
Repeatability fw µm: 3
Standard: factory
Package contains: case, spanner for changing the styli, stylus dia. ø 2 mm, mounting shaft 800a8
Accessories:
Stylus ø 1.0 mm, carbide, l = 14.5 mm, type 800 ts
Stylus ø 2.0 mm, carbide, l = 14.5 mm, type 800 ts
Stylus ø 3.0 mm, carbide, l = 14.5 mm, type 800 ts
Stylus ø 2.0 mm, ruby, l = 14.5 mm, type 800 tsr
Stylus ø 1.0 mm, carbide, l = 41.24 mm, type 800 tl
Stylus ø 2.0 mm, carbide, l = 41.24 mm, type 800 tl
Stylus ø 3.0 mm, carbide, l = 41.24mm, type 800 tl
Stylus ø 2.0 mm, ruby, l = 41.24 mm, type 800 tlr
Battery 3 V, CR 2032
Data connection cable RS232C (2 m)
800 EWu Data connection cable USB (2 m)
FEATURES
• Inductive measuring system
• Battery life approx. 2 years
• Operating unit is protected against coolants and lubricants, protection class IP65
• Combined analog and digital display
• Operating and display unit (bezel) can be rotated through 360°
• Satin chrome finished housing with 3 dovetail guideways
• Shockproof
• Movement bearings are jeweled
• Automatic matching to sensing direction
• Anti-magnetic
• Double lever supported in ball bearings
• Overload protection provided by slip clutch
• Data interface: Opto RS232C, USB
• IP protection category: IP 65
