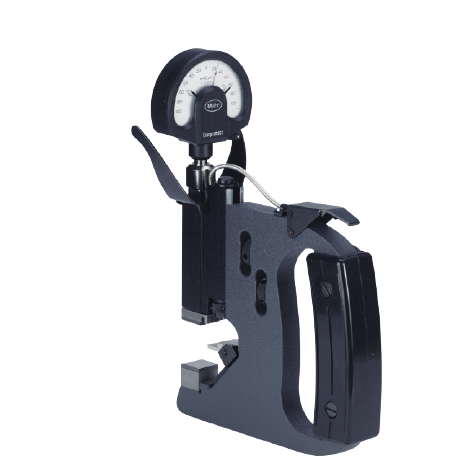

For rapid measurements of cylindrical parts such as shafts, bolts and spindles
For thickness and length measurements
Lifting lever: yes
Product type: 301 P
Application range: 0 – 25.4mm
Size of measuring surface: 15.5 x 15.5 mm
Measuring span: 0.5mm
Parallelism deviation: 4µm
Measuring force: 18N
Package contains: allen key
Accessories:
Millimess 5 µm, ± 130 µm, type 1004
Millimess 0.01 mm, ±0.25 mm, type 1010
Digital indicator, 0.0005 mm, 12.5 mm, type 1086 R
Digital indicator, 0.0005 mm, 12.5 mm, type 1086 Ri
FEATURES
• Patented “Channel Lock” design assures precise parallel anvil surfaces throughout the full 25 mm / 1“ range of adjustment
• All Series 300P snap gages are fully adjustable with positive position locking at any point within the range
• 0.50 mm / .020“ movement of sensitive contact
• Snap gages available over a wide range of sizes, styles, and readout configurations
• Large 15.5 mm / .61“ square tungsten carbide anvils provide flat, parallel, working surfaces ensuring precision that lasts
• Indicator can be rotated to read from front or rear of the gage
• All adjustments accomplished using a single hex wrench (furnished)
• Package contains: allen key
