Product image

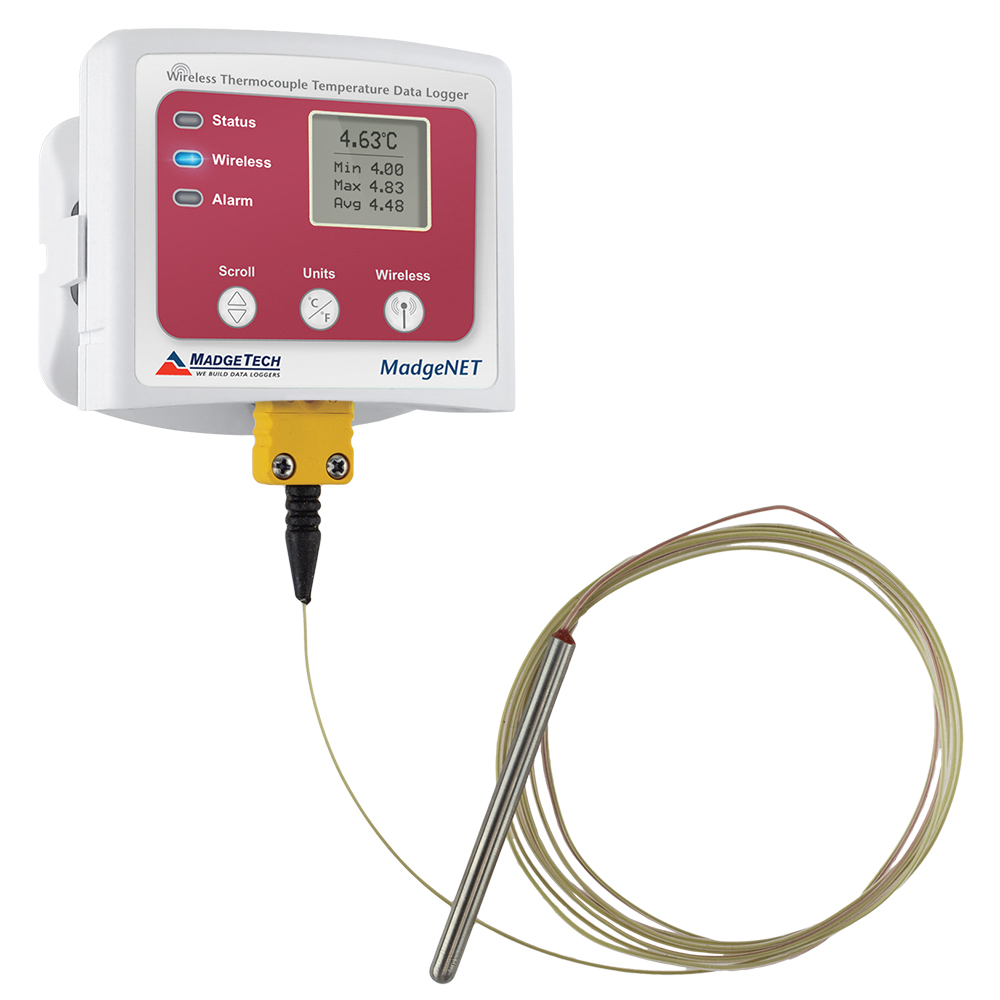

Madgetech VTMS ລະບົບການຕິດຕາມອຸນຫະພູມຂອງວັກຊີນ (-20 °C - 60 °C)

ຕິດຕໍ່
ການຊຳລະເງິນທີ່ປອດໄພ
ການຮັບປະກັນຄຸນນະພາບ
ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ
ມີບໍລິການຈັດສົ່ງ

General

Memory: 16,128 readings (all channels enabled)

Reading Rate: 1 reading every second up to 1 reading every 24 hours

Baud Rate: 250,000

Cold Junction Compensation: Automatic based on internal channel

Battery Life: 3 years typical at 1 minute reading rate

Material: ABS Plastic

Dimensions: 3.0 in x 3.5 in x 0.95 in (76.2 mm x 88.9 mm x 24.1 mm) - Data logger only

Weight: 1.1250 LBS

Operating Environment: -20 °C to +60 °C (-4 °F to +140 °F), 0 %RH to 95 %RH non-condensing

Required Interface Package: RFC1000 (wireless); USB to Mini USB Cable

Approvals: US (FCC), CA (IC), CE, South Korea (KCC), China (CMIIT), Japan (LCIE)

Temperature

Internal Channel Temperature Sensor: Semiconductor

Internal Channel Temperature Range: -20 °C to 60 °C (-4 °F to +140 °F)

Internal Channel Temperature Resolution: 0.1 °C (0.18 °F)

Internal Channel Temperature Calibrated Accuracy: ±0.5 °C

Remote Channel Temperature Sensor: Type K Thermocouple (Included)

Remote Channel (Thermocouple) Temperature Range: -100 °C to +80 °C (-148 °F to +176 °F)

Remote Channel (Glycol Bottle) Temperature Range: -50 °C to +80 °C (-58 °F to +176 °F)

Remote Channel Temperature Resolution: 0.1 °C (0.18 °F)

Remote Channel Temperature Calibrated Accuracy: ±0.5 °C

Datasheet
