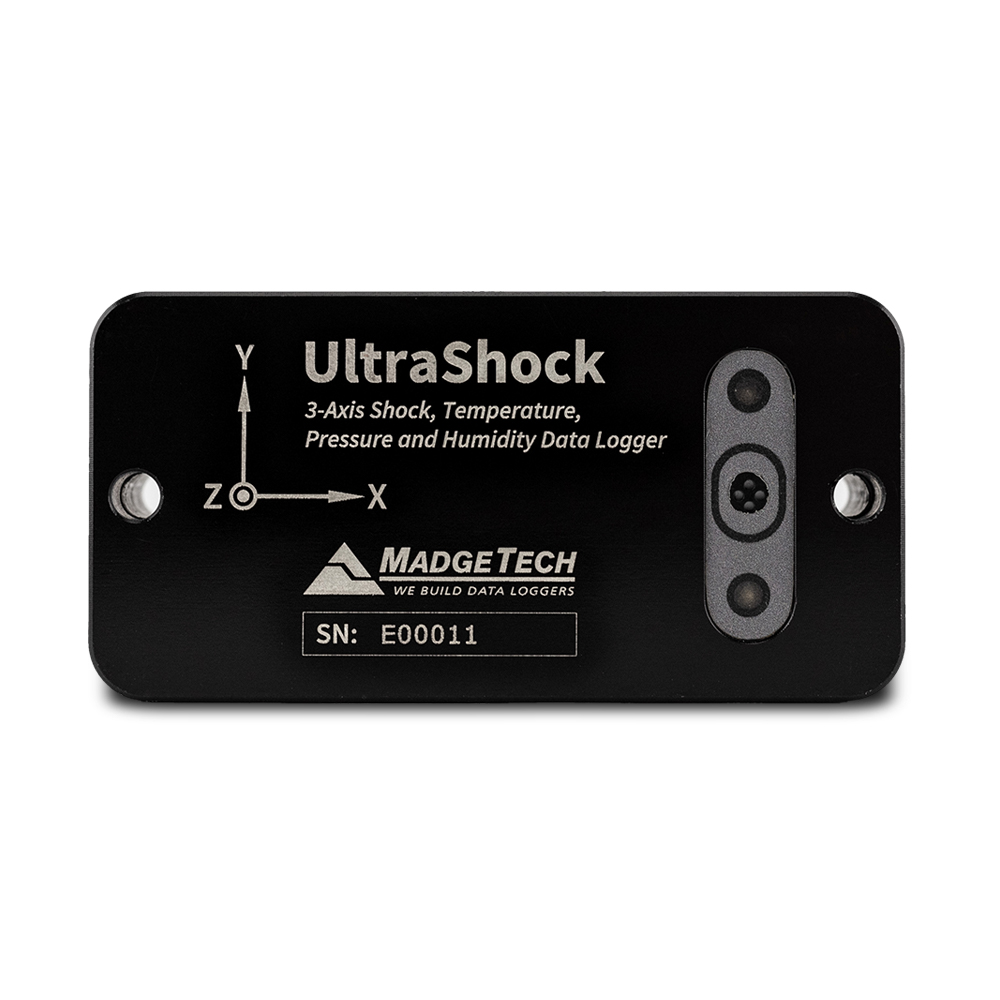

Madgetech UltraShock ອຸນຫະພູມ, ຄວາມຊຸ່ມຊື່ນ, ຄວາມກົດດັນ ແລະຕົວບັນທຶກຂໍ້ມູນການຊັອກ Tri-Axial
General:
Memory: 3,593,358 readings; (598,893 per channel, all channels in use)
Reading Rate:
- 1024 Hz to 5 minutes for shock, selectable in software. Temperature, pressure & humidity sampled approx. every
- 2 seconds at intervals shorter than
- 2 seconds. Otherwise, sampled at the reading rate.
Battery Life: 90 days typical at 64Hz rate
Material: Anodized aluminum
Dimensions: 3.4 in x 1.7 in x 1.3 in; (86 mm x 43 mm x 33 mm)
Operating Environment: -20 ºC to +60 ºC, 0 %RH to 95 %RH non-condensing
Required Interface Package: USB-C cable required (included); 1MBaud
Approvals: CE compliant; EMC Directive 2014/30/EU; RoHS Directive 2011/65/EU; IP Rating 64
Temperature:
Sensor: Semiconductor
Range: -20 ºC to +60 ºC
Resolution: 0.1 ºC
Accuracy: ±0.5 ºC (+5 ºC to +60 ºC)
Humidity:
Sensor: Capacitive Polymer
Range: 0 %RH to 95 %RH
Resolution: 0.1 %RH
Calibrated Accuracy: ±3 %RH (±2 %RH typical at 25 ºC)
Specified Accuracy Range: +20 °C to +40 °C; 20 %RH to 80 %RH
Pressure:
Sensor: Semiconductor Strain Gage
Range: 100 mbar to 1300 mbar
Resolution: 0.05 mbar
Calibrated Accuracy: ±1.5 mbar at 25 ºC; at 750 mbar
Shock:
Accelerometer Type: MEMS Semiconductor
Acceleration Range (g): ±15 g/±100 g/±300 g
Acceleration Resolution (g): 0.02 g/0.05 g/0.2 g
Calibrated Accuracy (g): ±0.3 g/±2.0 g/±6.0 g
Sampling Rate: 1000 Hz
Accelerometer Freq. Resp.: >1000 Hz (15 g); >500 Hz (100 g, 300 g)
Reading Rate:
- 1024 Hz to 5 minutes for shock, selectable in software. Temperature, pressure & humidity sampled approx. every
- 2 seconds at intervals shorter than
- 2 seconds. Otherwise, sampled at the reading rate.
