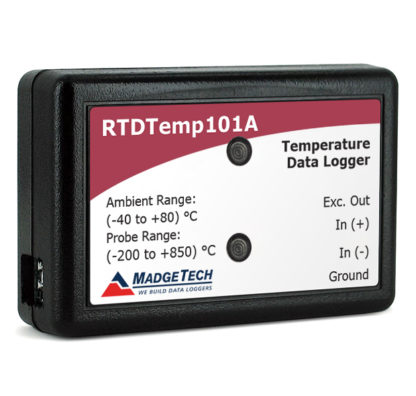

Madgetech RTDTemp101A ຕົວບັນທຶກຂໍ້ມູນອຸນຫະພູມໂດຍອີງໃສ່ RTD (-200 °C to +850 °C)
General
Memory: 1,396,736 readings
Reading Rate: 1 reading every second to 1 reading every 24 hours
Alarm: Yes
Baud Rate: 115200
Channels: 1
LED Indicators: Red & Green
Push-Button Start: Yes
Battery Life: 10 years typical at a 15 minute reading rate
Material: Polycarbonate
Dimensions: 1.4 in x 2.1 in x 0.6 in (35 mm x 54 mm x 15 mm)
Operating Environment: -40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 95 %RH non-condensing
Required Interface Package: IFC200
Approvals: CE
Temperature
Temperature Sensor: External 100 Ω RTD (Sold Separately)
Temperature Range: 18 Ω to 400 Ω, -200 °C to +850 °C (-328 °F to +1562 °F) (Probe Dependent)
Temperature Resolution: 0.0001 Ω, 0.01 °C (0.018 °F) (Probe Dependent)
Temperature Calibrated Accuracy:
- ±0.015 Ω, ±0.05 °C (±0.09 °F) (Probe Dependent)
- Calibrated Accuracy Range: *18 Ω to 200 Ω, -200 °C to +265 °C (-328 °F to +509 °F)
- Calibrated accuracies based on standard MadgeTech calibrations for 0 Ω to 200 Ω range
