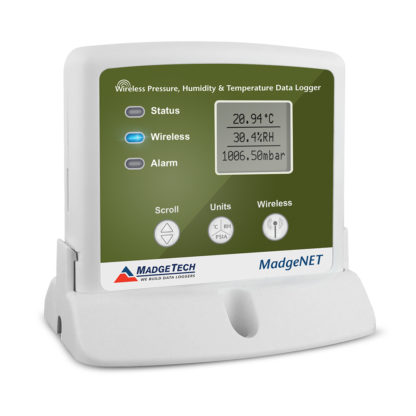

Madgetech RFPRHTemp2000A ຕົວບັນທຶກຂໍ້ມູນຄວາມກົດດັນໄຮ້ສາຍ, ຄວາມຊຸ່ມຊື່ນ ແລະອຸນຫະພູມ (-20 °C - +60 °C; 0 - 95 %RH; 250 - 1300 mbar)
General:
Memory: 10,752 readings (all channels enabled)
Reading Rate: 1 reading every second up to 1 reading every 24 hours
Baud Rate: 250000
LED Functionality:
- Green LED blinks every 5 seconds to indicate unit is logging
- Blue LED blinks every 15 seconds to indicate unit is in wireless mode
- Red LED blinks every 1 second to indicate alarm condition
Battery Life: 5 years typical at a 15 minute reading rate
Material: ABS plastic
Dimensions: 3.0 in x 3.5 in x 0.95 in (76.2 mm x 88.9 mm x 24.1 mm) - Data logger only
IP Rating: IP22
Operating Environment:
- -20 °C to +60 °C (-4 °F to +140 °F),
- 0 %RH to 95 %RH non-condensing,
- 0.002 PSIA to 100 PSIA
Required Interface Package: RFC1000
Approvals: US (FCC), CA (IC), CE, South Korea (KCC), China (CMIIT), Japan (LCIE)
Temperature:
Internal Channel Temperature Sensor: Resistance Temperature Detector (RTD)
Internal Channel Temperature Range: -20 °C to +60 °C (-4 °F to +140 °F)
Internal Channel Temperature Resolution: 0.01 °C (0.018 °F)
Internal Channel Temperature Calibrated Accuracy: ±0.5 °C (+5 °C to +55 °C)
Humidity:
Humidity Sensor: Relative Humidity Sensor
Humidity Range: 0 %RH to 95 %RH
Humidity Resolution: 0.1 %RH
Humidity Calibrated Accuracy: ±3 %RH
Pressure:
Pressure Sensor: Silicon
Pressure Range: 250 mbar to 1300 mbar
Pressure Resolution: 0.02 mbar
Pressure Calibrated Accuracy: 10 mbar (+5 °C to +55 °C)
Wireless:
RF Baud Rate: 250000
Output Power: +0 dBm typical
Receiver Sensitivity: -95 dBm typical
Typical outdoors Line of sight: Up to 2000 ft
Typical Indoors line of sight: Up to 500 ft
