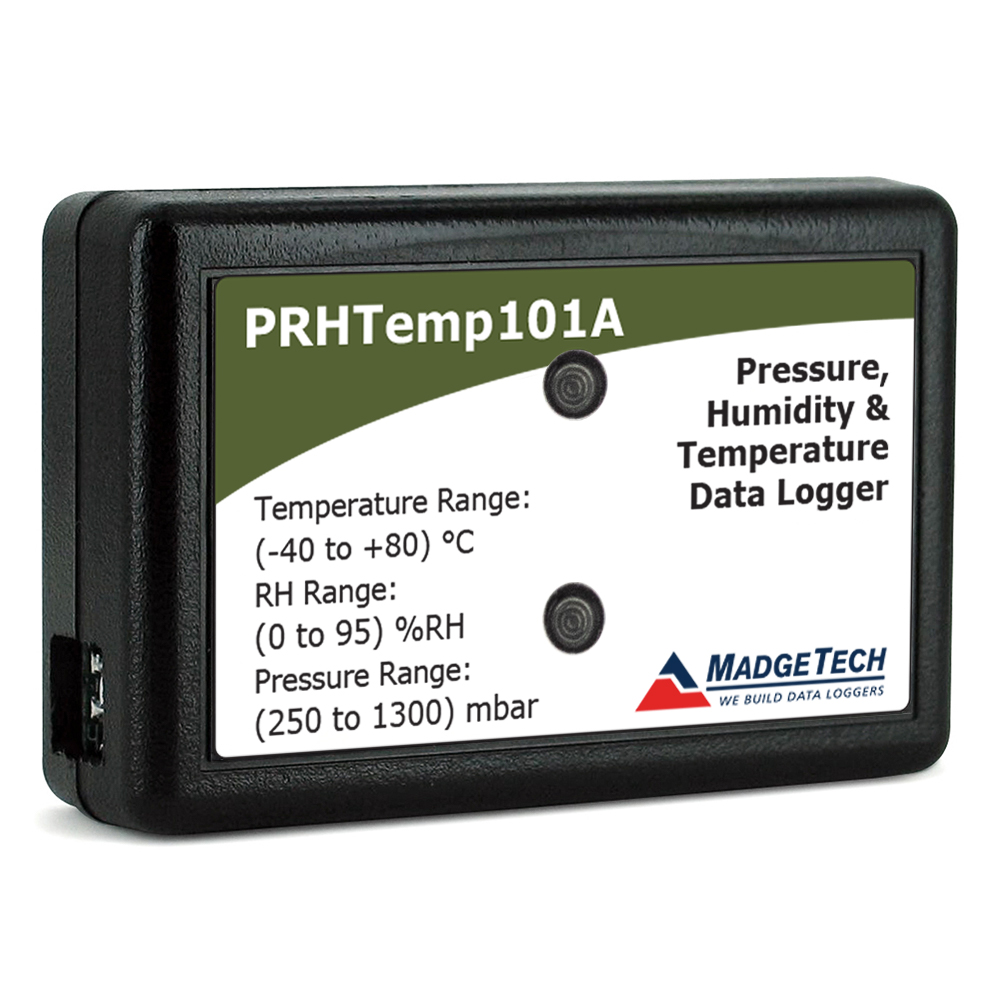

Madgetech PRHTemp101A ຕົວບັນທຶກຂໍ້ມູນຄວາມກົດດັນ, ຄວາມຊຸ່ມຊື່ນ ແລະອຸນຫະພູມ (-40 °C to +80 °C; 0%-95 %RH; 250 mbar - 1300 mbar)
General:
Memory: 523,776 readings
Reading Rate: 1 reading every second up to 1 reading every 24 hours
Baud Rate: 115200
LED Indicators: Red & Green
Battery Life: 10 years typical (at a 15 minute reading rate)
Material: Polycarbonate
Dimensions: 1.4 in x 2.1 in x 0.6 in (35 mm x 54 mm x 15 mm)
Operating Environment: -40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 95 %RH non-condensing, 0.002 PSIA to 100 PSIA
Required Interface Package: IFC200
Approvals: CE
Temperature:
Internal Channel Temperature Sensor: Resistance Temperature Detector (RTD)
Internal Channel Temperature Range: -40 °C to +80 °C (-40 °F to +176 °F)
Internal Channel Temperature Resolution: 0.01 °C (0.018 °F)
Internal Channel Temperature Calibrated Accuracy:
- ±0.5 °C (±0.9 °F) from 0 °C to +55 °C (+32 °F to +131 °F)
- ±1.0 °C (±1.8 °F) from -40 °C to 0 °C (-40 °F to +32 °F)
- and +55.01 °C to +80 °C (+131.01 °F to +176 °F)
Humidity:
Humidity Sensor: Capactive Polymer
Humidity Range: 0 %RH to 95 %RH
Humidity Resolution: 0.1 %RH
Humidity Calibrated Accuracy: 3.0 %RH (+5 °C to +55 °C / +41 °F to +131 °F)
Specified Accuracy: 25 %RH to 75 %RH
Range: +20 °C to +40 °C; Hysteresis Error 1 % typical, 3 % Maximum
Pressure:
Pressure Sensor: Piezoresistive
Pressure Range: 250 mbar to 1300 mbar
Pressure Resolution: 0.02 mbar
Pressure Calibrated Accuracy: 10 mbar (+5 °C to +55 °C / +41 °F to +131 °F)
