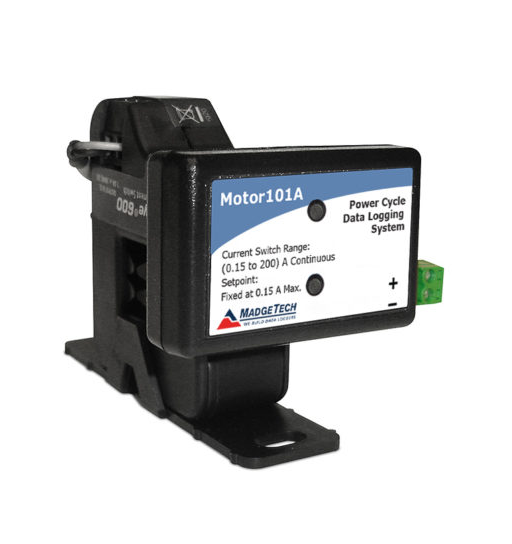

Madgetech Motor101A ລະບົບ Power Cycle Data Logger (0.15 -200 Amps)
General:
Memory: 465,578 readings
Reading Rate: 4 Hz to 1 every 24 hours
Baud Rate: 115200
LED Indicators: Red & Green
Push-Button Start: Yes
Battery Life: 10 years typical
Material: ABS Plastic
Dimensions: Data Logger: 1.4 in x 2.2 in x 0.6 in (36 mm x 56 mm x 16 mm); Current Switch: 2.1 in x 3.5 in x 1.0 in (54 mm x 89 mm x 16 mm)
Operating Environment: -15 °C to +40 °C (+5 °F to +104 °F), 10 %RH to 90 %RH non-condensing
Required Interface Package: IFC200
Approvals: CE
State:
State Resolution: 1 second (reading rate dependent)
Amperage Range: 0.15 to 200 Amps
Trip Point: 0.15 A (150 mA) fixed (200 mA AC for 50 Hz operation)
Status Output: N.O.1.0 A at 30 VAC/DC
Housing: Split Core
