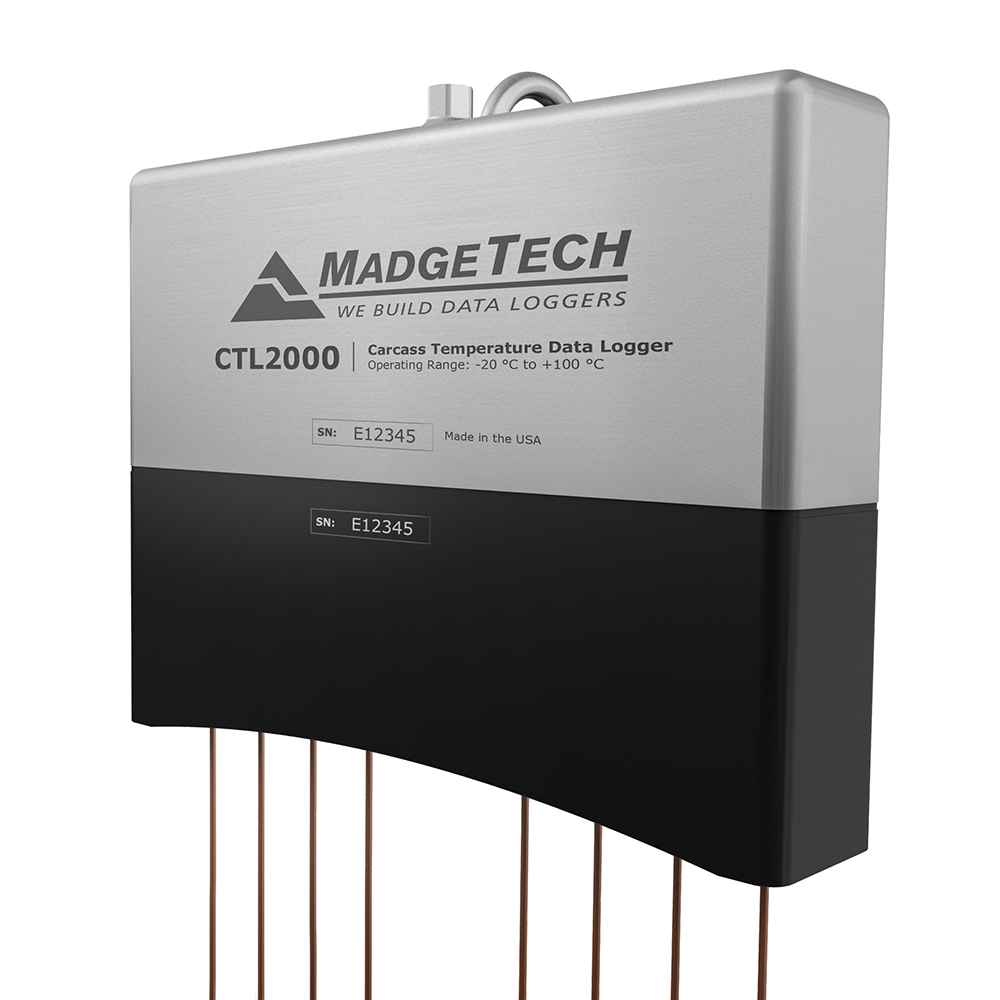

Madgetech CTL2000 ຕົວບັນທຶກຂໍ້ມູນອຸນຫະພູມ (-20 °C to +100 °C)

ຕິດຕໍ່
ການຊຳລະເງິນທີ່ປອດໄພ
ການຮັບປະກັນຄຸນນະພາບ
ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ
ມີບໍລິການຈັດສົ່ງ

General

Memory: 129,024 readings

Reading Rate: 4 readings every second up to 1 reading every 24 hours

Cold Junction Compensation: Automatic, based on internal channel

Channels: 8 internal channels & 8 remote channels

LED Indicators: Blinks every 2 seconds to indicate unit is logging; Blinks every 5 seconds to indicate unit is in delay start mode:

Battery Life: 4 years typical at a 5 minute reading rate; 7.2V lithium battery included; user replaceable:

Material: Enclosure & Hook: 316 Stainless Steel

Gasket Seal: EPDM Rubber (NSF-51):

Dimensions: 8.1 in x 6.5 in x 3.1 in (205 mm x 165 mm x 80 mm)

IP Rating: IP67

Operating Environment: Continuous use: -20 °C to +100 °C (-4 °F to +212 °F) 0 %RH to 100 %RH

Required Interface Package: IFC110 or IFC200

Weight: 3.1000 LBS

Temperature

Internal Channel Temperature Sensor: Semiconductor

Internal Channel Temperature Range: -20 °C to +100 °C (-4 °F to +212 °F)

Internal Channel Temperature Resolution: 0.01 °C (0.018 °F)

Internal Channel Temperature Calibrated Accuracy: ±0.5 °C (+10 °C to +80 °C)

Remote Channel Temperature Sensor: Compatible with Type K Thermocouple Only

Remote Channel Temperature Range: -270 °C to +1370 °C (-454 °F to +2498 °F)

Remote Channel Temperature Resolution: 0.1 °C (0.18 °F)

Remote Channel Temperature Calibrated Accuracy: ±0.5 °C (±0.9 °F)
