BASIC OPERATION

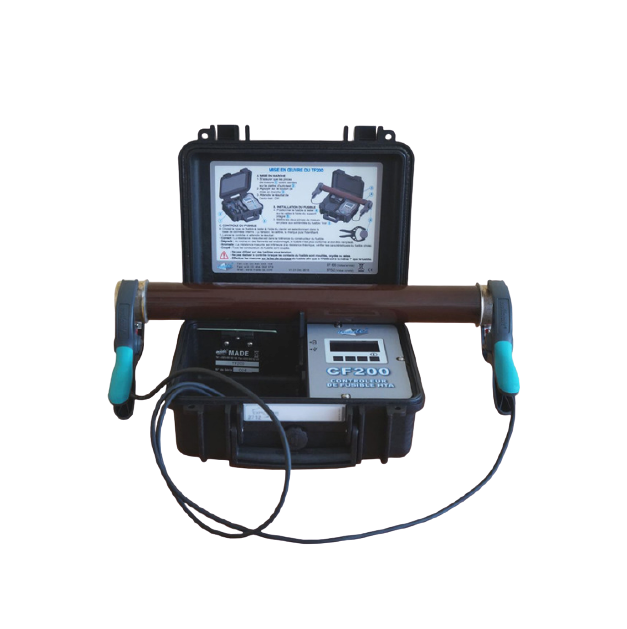

The MADE fuse tester performs a measurement of the fuse resistance.
This measurement is based on the 4 wire measurement method with automatic compensation of the temperature effect on the result.
The fuse tester consists of a rigid case, including :
- An operating panel
- Two measuring clamps
- A self-test system
- A temperature sensor
The fuse test is performed in 4 steps :
- Power on (with automatic self-test)
- Connection of the 2 measuring clamps to the fuse
- Selection of the fuse type from a selection menu
- Measurement of the fuse resistance and immediate display of the result
The type of fuse to be tested is selected from the on-board data base holding the following parameters :
- Voltage
- Amperage
- Trade Mark
- Identifier
The database is generated using a management PC software which can be updated by the user and transferred to the tester via an USB connection.
Ranges: 2,5Ω~5mΩ
Accuracy: 0.1 mΩ
Tolerance: 12,5 % (i. e. detection of 1 cut wire out of 8)
Maximum number of fuses in memory (database): Up to 3000
Test current: 200 mA
Weight: 2,6 kg
Dimensions: 304 x 270 x 144 mm
Operating temperature: -20°C to +55°C
Power supply: 2x9 V battery 6LR61 type (alcaline or lithium)
Maximum number of measurements without changing the batteries: 2200 measurements
Standard: IEC-1010-1, CAT I 3V
Sealing: IP66 closed, IP52 open
Mechanical protection: IK07 closed, IKI03 open
