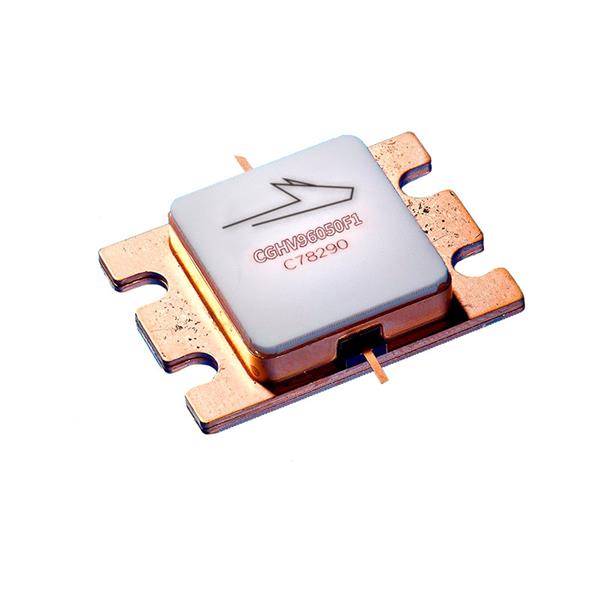

MACOM CGHV96050F1 GaN HEMTs GaN HEMT 7.9-9.6GHz, 50 Watt

Gain: 16 dB

Technology: GaN

Output Power: 80 W

Configuration: Single

Mounting Style: Screw Mount

Development Kit: CGHV96050F1-TB

Transistor Type: GaN HEMT

Transistor Polarity: N-Channel

Maximum Operating Frequency: 9.6 GHz

Minimum Operating Frequency: 7.9 GHz

Id - Continuous Drain Current: 6 A

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 40 C

Vgs - Gate-Source Breakdown Voltage: - 10 V to 2 V

Vds - Drain-Source Breakdown Voltage: 100 V

Vgs th - Gate-Source Threshold Voltage: - 3 V
