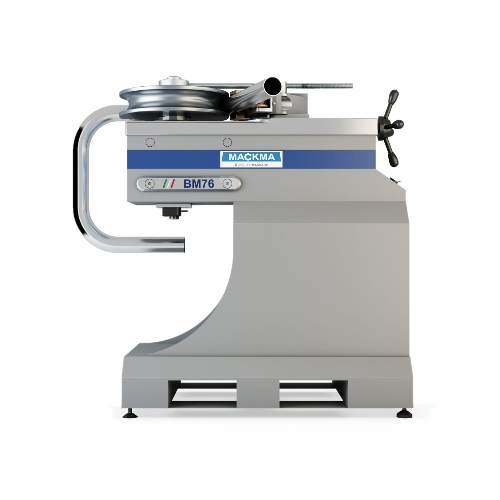

Mackma BM76-E Portable Pipe Bender ມີການຄວບຄຸມຜູ້ຊ່ຽວຊານ

Pipe Max Outer Diameter: 76 mm

Max Torque: 10.000 N/m

Capability with FE – 42 daN/mq: 76x3 mm

Capability with FE – 35 daN/mq: 70x5 mm

Capability with AISI 304/316 – 65 daN/mq: 70x4 mm

Maximum radius: 370mm

Max curvature angle: 180°

Bending direction: rightward and leftward

Electric tension: 380V

Max installed power: 2 KW

Weight: 306 Kg

Dimensions (WxhxL): 972x1120x700 mm
