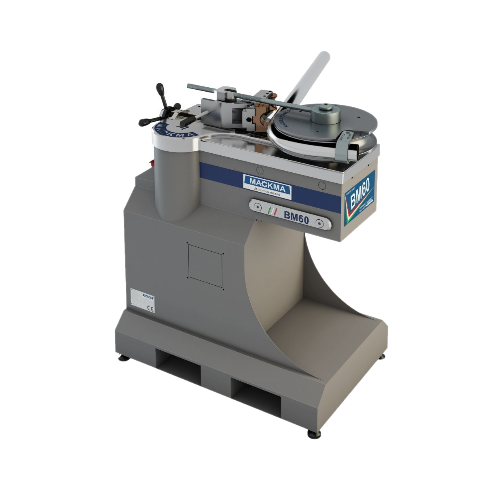

Mackma BM60-E Portable Pipe Bender ມີການຄວບຄຸມຜູ້ຊ່ຽວຊານ

Pipe Max Outer Diameter: 64 mm

Max Torque: 8000 N/m

Capability with FE – 42 daN/mq: 60x4 mm

Capability with FE – 35 daN/mq: 64x5 mm

Capability with AISI 304/316 – 65 daN/mq: 64x3 mm

Maximum radius: 370mm

Max curvature angle: 180°

Bending direction: rightward and leftward

Electric tension: 380V

Max installed power: 1.5KW

Weight: 210Kg

Dimensions (WxhxL): 940x1100x620 mm
