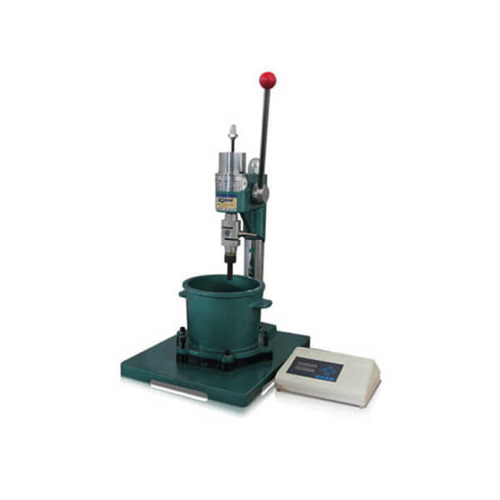

Ludatest HG-1000 Concrete Penetration Resistance Tester (1000N)

Description:

It is suitable for testing the mix design of various types of cements, admixtures and concretes as well as the setting time of concrete mixtures in different temperature environments.

Specification:

Display mode: digital display

Up the sample mold diameter (mm): Φ 160

Under the sample mould diameter (mm): Φ 150

Maximum penetration force (N): 1000

Display value error: ≤±1%

Minimum degree value (N) : 0.1

Needle area (mm²) : 100, 50, 20

Penetration resistance (MPa): 0.2~3.5,3.5~20.0,20.0~28.0

Voltage: AC220V±10%, 50 Hz
