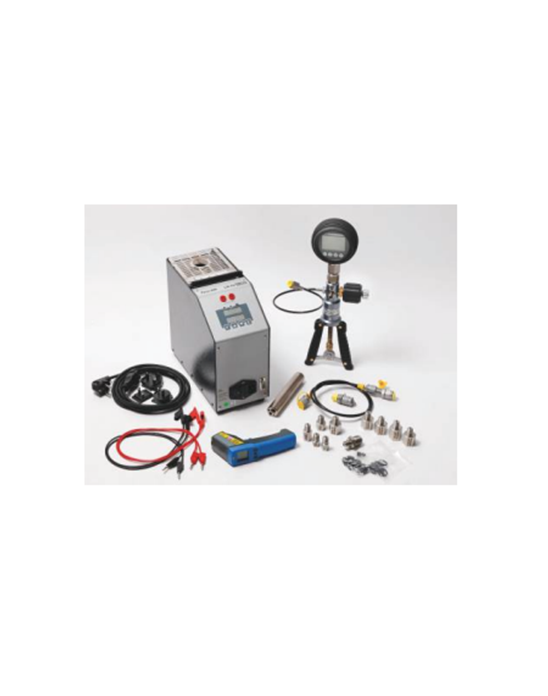

The equipment set includes:
Portable Temperature Calibrator
Model: PYROS 650 (Item code: PYROS-650-DNV)
Technical Specifications:
Heat source control for temperature calibration
Temperature range: ambient temperature up to 650°C
Functions: Ramp and Switch Test
Accuracy: ±0.5°C
Stability: ±0.5°C
Well dimensions: Depth 150mm, Diameter 26mm
Communication interface: RS232
Power supply: 115/230 VAC
Scope of Supply:
Temperature calibrator
Power cable for the calibrator
Connection cable for probe testing
Spare fuse
Insert extractor tool
Thermal insert with 4 holes (diameters 3.2–5.0–7.0–10.5 mm)
User manual
Factory calibration certificate
Infrared Thermometer (Non-Contact Measurement)
Model: ScanTemp 385
Technical Specifications:
Measuring range: -35 to +365°C (-31 to +689°F)
Features: Max temperature display, data hold function, backlit LCD, unit switchable between °C/°F
Operating temperature: 0...50°C (32...122°F)
Accuracy: ±2% or ±2°C (whichever is greater)
Repeatability: ±1% or ±1°C (whichever is greater)
Emissivity: 0.95 or 0.7 (switchable)
Display resolution: 0.1°C; above 199.9°C: 1°C
4-digit LCD display
Response time: approximately 500ms
Optical resolution: 12:1
Scope of Supply:
Infrared thermometer with battery
User manual
Digital Pressure Gauge
Model: DM80 (Item code: DM80-0040-0-G12)
Technical Specifications:
Pressure range: 0 ~ 40 bar
Accuracy: ±0.5% Full Scale
Pressure connection: 1/2" BSP Male
Casing material: Metal
Protection rating: IP65
Gauge diameter: 80mm
Weight: 600g
Scope of Supply:
Digital pressure gauge with protective case and battery
User manual
Handheld Pressure/Vacuum Pump
Model: LPP40 (Item code: LPP-40-G14)
Technical Specifications:
Positive pressure range: 0 ~ 40 bar
Vacuum range: 0 ~ -0.95 bar (-950mbar)
Pressure connections:
1/2" BSP female for connection to reference gauge
1/4" BSP female for connection to the device under test and other pressure equipment
Design: Button switch to toggle between vacuum and positive pressure generation
High-pressure adjustment: via control valve
Fine-pressure adjustment: via fine control valve
Scope of Supply:
Handheld pressure pump
Pressure connection hose
User manual
Other Accessories:
Adaptor set for connecting devices under test with BSP, NPT threads
Carrying case
