Working power supply: AC (220V±10%) V 50Hz;
The whole machine power: power ≤1800W;
Flask heating furnace power: (0 ~ 500)W continuously adjustable;
Condensing circulating water temperature control range: room temperature +5℃ (minimum 30℃) ~ 80℃±3℃, continuous adjustable;
Cold trap working mode: semiconductor refrigeration. Minimum temperature: ≤-40℃;
Absolute pressure setting range: 2mmHg; 5mmHg; 10mmHg; 20mmHg; 50mmHg;
Absolute pressure measurement range: (2.00 ~ 170.00) mmHg± 0.01mmHg automatic constant pressure.
Absolute pressure control accuracy: residual pressure <1Kpa (7.5mmHg), accuracy <0.01Kpa (0.075mmHg) When residual pressure ≥1Kpa (7.5mmHg), accuracy ≤ 1% of absolute pressure.

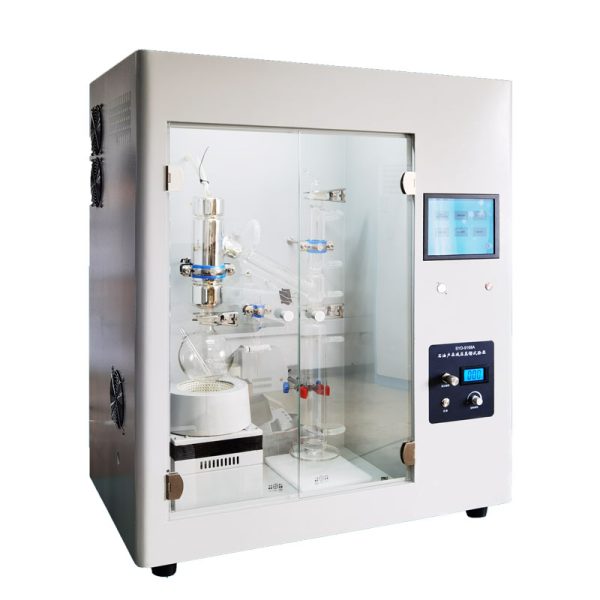

Introduction
This instrument is according to the requirements of the People’s Republic of China standard GB/T 9168 “Determination Method for vacuum distillation of petroleum products”, the newly developed intelligent, integrated vacuum distillation test instrument for petroleum products, is the company’s SYD-9168 vacuum distillation tester for petroleum products upgrade products.
This instrument is used to determine the boiling point range of petroleum products that can partially or completely evaporate when the maximum temperature of liquid reaches 400℃ under reduced pressure.
Main technical features
1, built-in industrial computer, 10.1 inch color LCD touch screen.
2, vacuum degree control system: vacuum degree is automatically controlled by the system, which can ensure that the high vacuum and high stability of the system are maintained during the experiment;
3, the instrument built-in cold trap, the use of semiconductor refrigeration technology, the whole machine is more compact.
4, the electric lifting platform control system, the button on the screen to control the lifting platform rise, fall and stop, the built-in upper and lower limit function to ensure the safety of the glass instrument.
5, built-in automatic condensate recovery system, the oil vapor captured by the cold trap during the experiment, after the end of the
experiment, with the temperature of the cold trap and liquefied automatically into the recovery bottle, convenient for users to take off the measurement.
6, the system is equipped with nitrogen interface, when the end of the experiment, the system will prompt the user to open the nitrogen valve, to avoid the air into the vacuum system and the danger, to further ensure the safety of the system.
7, the system will automatically convert the detection temperature into normal pressure temperature according to the pressure of the current vacuum system, eliminating the tedious table lookup by the user, and improving the conversion accuracy.
8, the experimental data will be automatically saved, you can generate the experimental report, you can also transfer the data to other places with U disk, or access the USB interface printer, directly print out the experimental report
