Power supply: AC220V ±10%, 50Hz
Instrument power consumption: ≤1400W
Coke oven temperature: 500℃
Temperature control accuracy: ±2℃
Heating power: 1200W
Use environment: ambient temperature 5℃ ~ 35℃; Relative humidity ≤85%
Overall size: 600mm×260mm×550mm (length × width × height)
Instrument net weight: 21kg

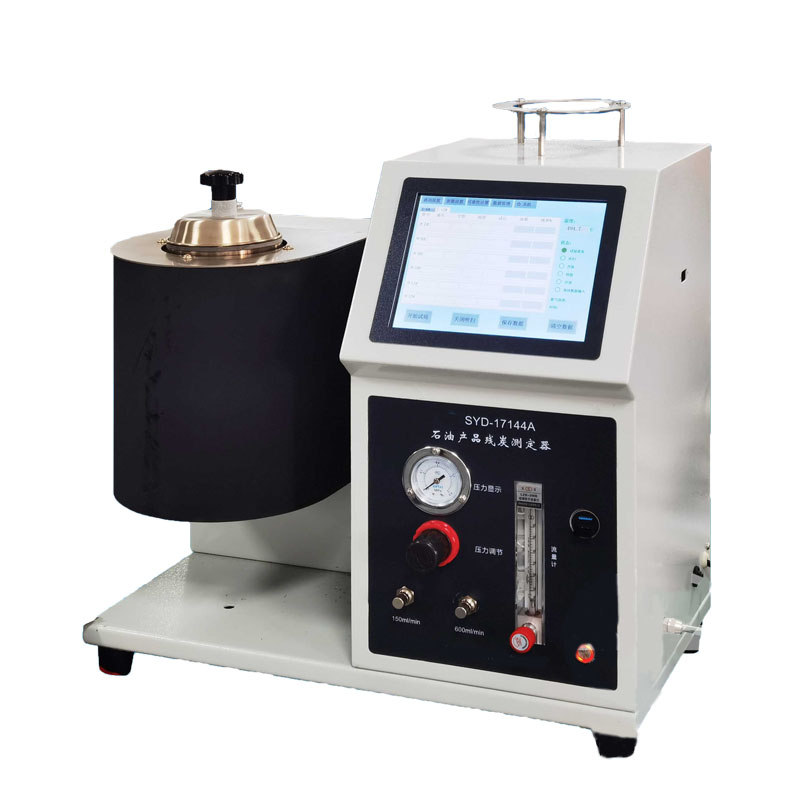

Introduction
This instrument is designed and manufactured according to the requirements stipulated in the national standard GB/T 17144-2021 “Micro method for the determination of carbon residue of Petroleum products” of the People’s Republic of China, and is used for the determination of carbon residue of petroleum products.
Main technical features
1, the use of desktop integrated structure, by electrical control box and high temperature test heating furnace two parts, reasonable design, simple structure.
2, the use of industrial computer control system, the instrument in accordance with the pre-set program, automatic control of the whole process of the test, command each component coordinated operation.
3, the use of touch screen, all Chinese interface, both as a variety of test data display, but also as the input of various test parameters, each interface has the current operation prompts, the user as long as the current prompt operation can be tested, easy to operate and control, display interface friendly.
4, in full accordance with the requirements of the standard automatic adjustment of nitrogen flow, automatic control of heating rate, automatic control of the set temperature, gas adjustment is convenient, accurate heating rate, temperature control is stable.
5, automatically collect test data, automatically calculate test results, and save the data according to user requirements.
6. The range (mass fraction) of carbon residue measured by this instrument is: 0.10% (m/m) ~ 30.0% (m/m).
7. For the petroleum fraction with carbon residue mass fraction less than 0.10%, 10% (volume fraction) of the residue can be prepared according to the requirements specified in the GB/T 17144-2021 standard before the determination, and then the instrument is used for determination.
8. There is no statistically significant difference between the measurement results obtained by this instrument and those obtained by Kahn’s carbon residue method in the range of 0.10% ~ 25.0% (mass fraction)
