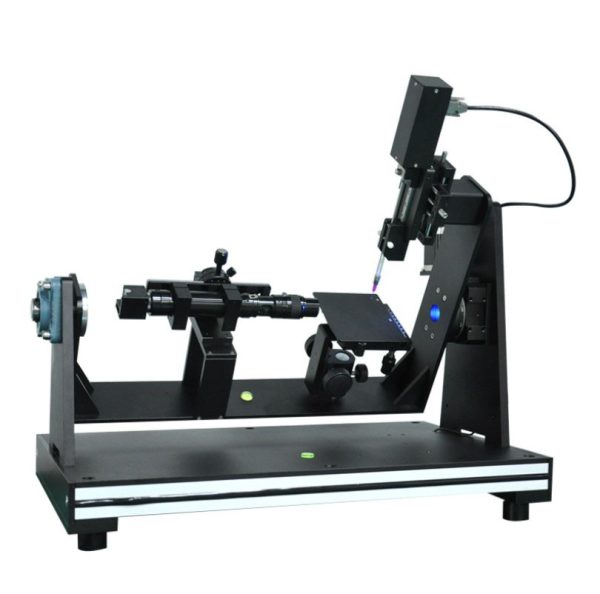

Host machine
Out size: 750mm(L)*408mm(W)* 695mm(H)
Weight: 30.5KG
Power: 220V / 60HZ
Light source system
Light source: Compact LED adjustable blue tone industrial grade cold light source
Lifelong: Its service life is over 25, 000 hours
Injection unit
Syringe: Special matching high precision quartz syringe, capacity of 500μL
Dropping liquid: Software control automatic feeding, accuracy up to0.01μL
Injection unit movement: Up down 50mm; Left right 50mm
Acquisition system
CCD: SONY Original imported high-speed industrial chip, 25 frames /S, 130W pixels
Lens: 0.7-4.5 x hd industrial grade continuous variable magnification microscope
Acquisition system regulation: Front back 100mm(3mm fine tuning), adjustable Angle of view(elevation, top view, 360° rotation and other multi-angle observation)
Sample table installation
Work table size: 120mm*150mm
Max sample size: 6inch
Sample table movement
Front back movement manual, stroke 60mm, precision 0.1mm
Move about manually, stroke 35mm, precision 0.1mm
Move up and down manually, stroke 80mm, precision 0.1mm
Integral sloping platform: Tilt range±90°, tilt accuracy ±0.01°, Tilt rate adjustable
Analysis software
Contact Angle measurement range: 0-180°
Accuracy of contact: Angle measurement ±0.1°
Table interface tension measurement range: 0-2000mN/m
Table interface tension measurement accuracy: 0.01 mN/m
Analysis software function
1, The most advanced contact Angle measurement and analysis software in China is automatic fitting(one-key automatic fitting, There is no human
error)include: Circle method, (Ellipse/Oblique ellipse), LY, (Differential circle / Differential ellipse);
2, Dynamic contact Angle fitting(batch fitting multiple images) Include(Wettability), (Video analysis);
3, (Surface energy);
4, (Forward and backward angle)
5, (Rolling angle)
6, (Surface tension);
7, (Adhesion work);
