Application

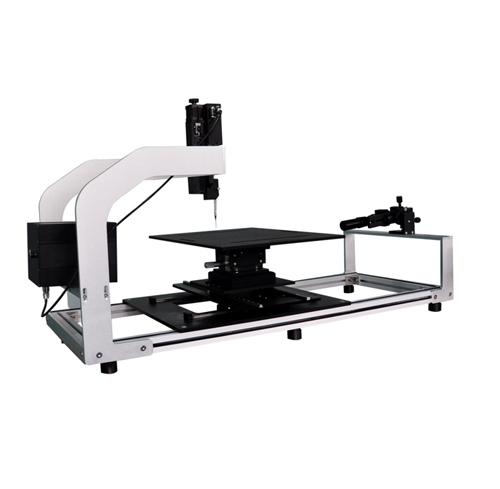

Contact Angle measuring instrument is widely used in various industries, in mobile phone manufacturing, glass manufacturing, surface treatment, material research, chemistry and chemical industry, semiconductor manufacturing, coating ink, electronic circuit, textile fiber, medical biology and other fields, contact Angle measurement has become an important instrument to evaluate the surface performance.
Specification:
Host machine
Boundary dimension: 1430mm(length)*480mm(Width)* 690mm(height)
Weight: 50.5KG
Power supply: 220V / 60HZ
Light source system
Light source: Dense LED adjustable blue tone industrial grade cold light source
Life span Service life of more than twenty-five thousand hours
Injection unit
Injection syringe:: Special high precision quartz syringe, volume 500μL
Dropping liquid: Software control automatic liquid feeding, precision up to 0.01μL
Injection unit movement: Up down 60mm; left. Right 100mm
Acquisition system
Ccd: SONY imported high speed industrial grade chip, 25 frames /S, 130W pixel
Lens: 0.7-4.5 times hd industrial-grade continuous variable magnification microscope
Acquisition system adjustment: Before and after 60 mm, view Angle adjustable (smooth inspect, look down, 360 ° rotating Angle
of view, etc)
Sample station installation
Work table size: 400mm*500mm
Maximum sample size: 21inch
Sample stand movement:
Before and after manual movement, stroke 200mm
Left and right manual movement, stroke 250mm
Manual up and down movement, stroke 20mm, accuracy 0.1mm
The platform can be rotated 360°
Analysis software
Measuring range of contact Angle: 0-180°
Contact Angle measurement Accuracy: ±0.1°
Table interfacial tension
Measurement range: 0-2000mN/m
Measurement accuracy: 0.01 mN/m
Analyzing software functions:
1. Automatic fitting method of the most advanced contact Angle measurement and analysis software in China (one-key automatic fitting, There is no artificial error), including :(Circle method), (Ellipse/ Ellipse), LY, (Differential Circle/Differential Ellipse);
2. Dynamic contact Angle fitting (batch fitting of multiple images) includes: (Wettability), (Video analysis);
3. (Surface Energy);
4, (Surface tension);
5. (Adhesion work);
