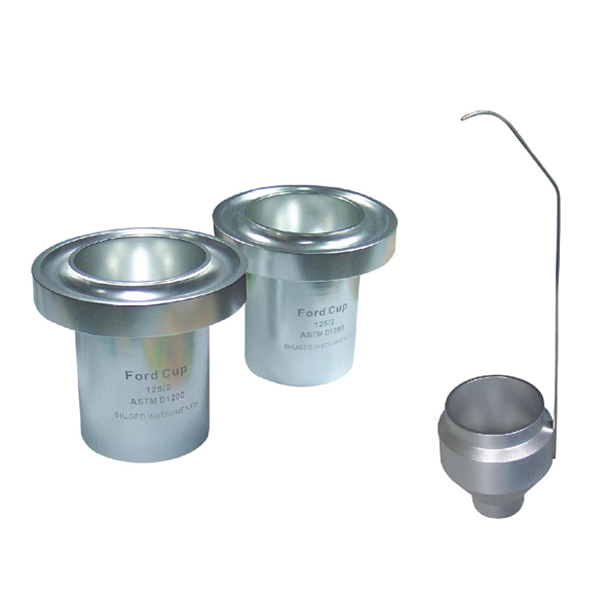

Details: For easy measurement of the viscosity of paints, inks, lacquers and other liquids.
Specification:
■ Internal Diameter：50±0.05mm
■ Outer Diameter：86±0.1mm
■ Internal Orifice Length：10±0.1mm
■ Production Tolerance：±2%
■ Details of each Ford Cups
Ford Cup (2#):
Internal Vertical Height: 43±0.1mm
Internal Orifice Diameter: 2.53mm
External Orifice Diameter: 5.0±0.5mm
Centistokes Range: 25-120
Efflux Time: 40-100 seconds (±0.2)
Ford Cup (3#):
Internal Vertical Height: 43±0.1mm
Internal Orifice Diameter: 3.4mm
External Orifice Diameter: 5.5±0.5mm
Centistokes Range: 49-220
Efflux Time: 25-105 seconds (±0.2)
Ford Cup (4#):
Internal Vertical Height: 43±0.1mm
Internal Orifice Diameter: 4.1mm
External Orifice Diameter: 6.0±0.5mm
Centistokes Range: 70-370
Efflux Time: 20-105 seconds (±0.2)
Ford Cup (5#):
Internal Vertical Height: 43±0.1mm
Internal Orifice Diameter: 5.2mm
External Orifice Diameter: 7.6±0.5mm
Centistokes Range: 215-1413
Efflux Time: 20-105 seconds (±0.2)
Hand-Held Ford Cup (4#):
Internal Vertical Height: 43±0.1mm
Internal Orifice Diameter: 4.1mm
External Orifice Diameter: 6.0±0.5mm
Centistokes Range: 70-370
Efflux Time: 20-105 seconds (±0.2)
