Aplication:

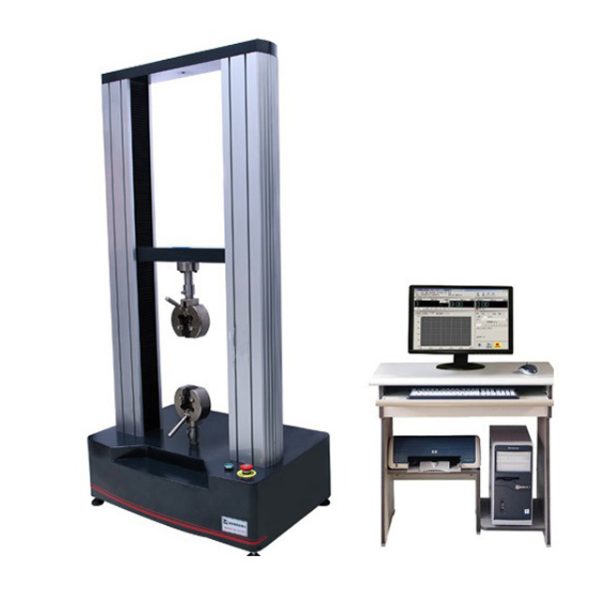

This machine is widely used in metal and nonmetal tensile, compression, bending and other mechanics performance test. Suitable for quality supervision, teaching, scientific research, aerospace, steel, metallurgy, automobile, rubber plastic, woven materials and test area.
Specification:
Max force: 50kN (5T）
Test force accuracy; ±1%
Test force range: 2%～100%
Test force resolution: 0.01%Fs
Measuring range of deformation: 2%～100%
Distortion measuring accuracy: ±1%
Displacement resolution: 0.001mm
The beam displacement relative error: ±1%
Speed range: 0.01mm/min～500mm/min
Beam speed relative error: ±1%
Max. Stretch: Stroke 1000mm (Not install grips）
Max compress stroke: 1000mm (Not install grips）
Test width: 400mm
Weight: 350kg
Power: 1000W 1 phase 220V
Size: L58*W80*H185cm
Drive methods: servo motor+Synchronous gear system+ball screw
