Digital oxygen index test equipment scope of application:

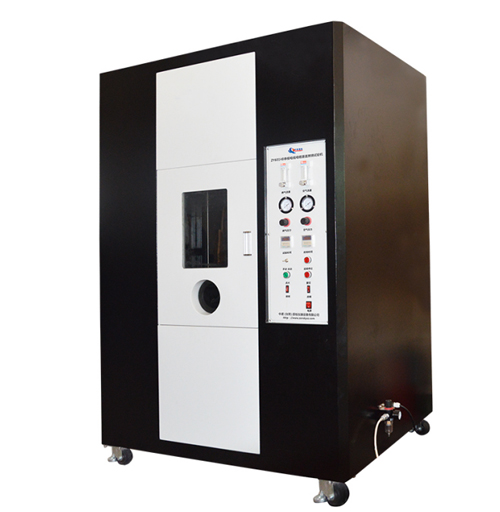

Digital oxygen index test equipment is suitable for the determination of the combustion performance of plastics, rubber, fiber, foam plastics, film and textile materials.
Main technical parameters
1. Range: 0-100%
2. The built-in temperature controller to control the temperature, the control range: 23 ℃ ±2 ℃
3. Digital resolution: 0.1%
4. Measurement accuracy: 0.4 grade
5. Flow regulation range: 0-10l /min (60-600l /h)
6. Response time: < 5S
7. High temperature resistant quartz glass tube, inner diameter 75 mm height 480 mm or more
8. Gas flow rate in combustion cylinder: 40mm ±2mm/s
9. Pressure gauge accuracy 2.5, resolution: 0.01mpa
10. The flowmeter: 1-15 l/min (60-900 l/H) is adjustable, test environment: the environment temperature: room temperature ~ 40 ℃;, relative humidity: 70%;
11. Input pressure: 0.2-0.3mpa
12. Working pressure: nitrogen 0.1-0.15mpa oxygen 0.1-0.15mpa oxygen/nitrogen mixed gas inlet: including pressure regulator valve, flow control valve, gas filter and mixing
chamber.
13. The sample holder can be used for soft and hard plastics, textiles, fire doors, etc
14. Propane (butane) ignition system, flame length 5mm-60mm can be adjusted freely
15. Gas: nitrogen and oxygen for industrial use with purity of > 99%;(user supplied).
16. Power requirements: AC220 (±10%) V, 50HZ
17. Maximum working power: 50W
18. Igniter: made of a metal, end diameter Φ 2 ±1 mm nozzle, can ignite sample in combustion tube, the flame length: 16 ±4 mm, the size is adjustable
19. Self-supporting material sample holder: it can be fixed in the position of the axis of combustion cylinder and can hold the sample vertically
20. Non-self-supporting material sample holder: two vertical edges of the sample can be fixed on the frame at the same time (optional for non-self-supporting materials such as textiles and films).
