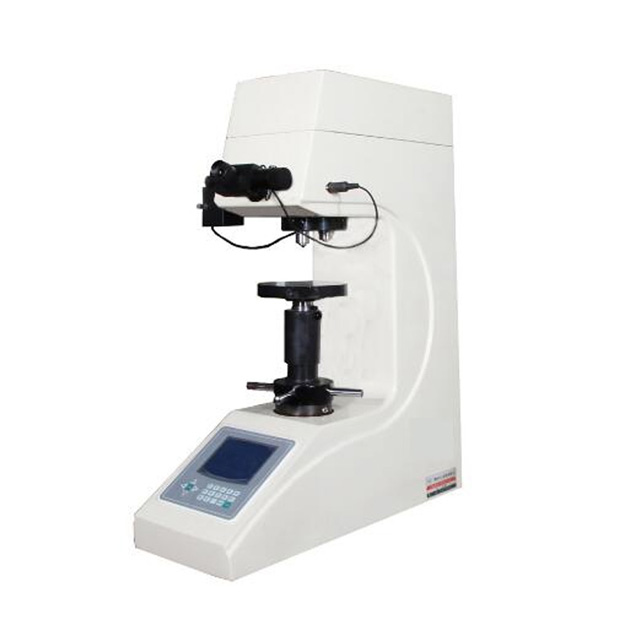

Range of application
1. Black metal, non-ferrous metal, IC flake, surface coating, laminated metal;
2. Glass, ceramics, agate, precious stones, thin plastic, etc.;
3. Depth and gradient hardness test of carbonization layer and quenching layer.
Main technical parameters
1. Measurement range: 5-5000hv.
2. Test force :(level 8)
9.807, 19.614, 24.518, 29.421, 49.035, 98.07, 196.14, 294.21N.
1, 2, 2.5, 3, 5, 10, 20, 30kgf.
3. Optical measurement system.
Objective: 10 x, 20 x.
Total magnification: 100 x, 200 x.
Measuring range: 400 mu m.
Dividing value: 0.1 mu m.
4. Appearance size and power supply.
Dimensions: 600*330*700mm.
Maximum height: 200mm.
Pressure head center to machine wall distance: 130mm.
Power supply: AC220V/50Hz;
Weight: 70Kg.
