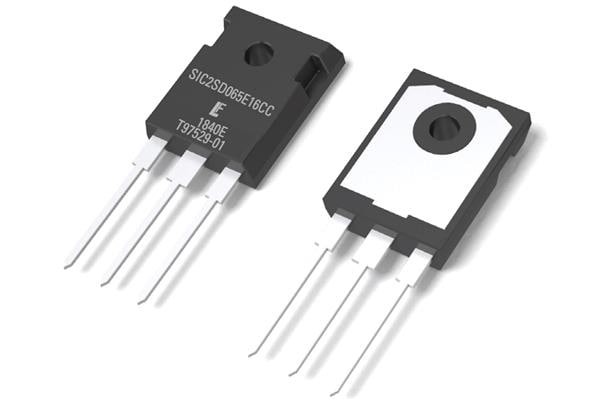

Littelfuse LSIC2SD065E16CCA ດາຍໂອດ Schottky Silicon Carbide 650V/16A SiC SBD TO247-3LAEC-Q101

Technology: SiC

Unit Weight: 1.500 g

Configuration: Dual Anode Common Cathode

Qualification: AEC-Q101

Mounting Style: Through Hole

If - Forward Current: 16 A

Ir - Reverse Current: 50 uA

Vf - Forward Voltage: 1.5 V

Vr - Reverse Voltage: 650 V

Pd - Power Dissipation: 176 W

Ifsm - Forward Surge Current: 40 A

Maximum Operating Temperature: + 175 C

Minimum Operating Temperature: - 55 C

Vrrm - Repetitive Reverse Voltage: 650 V
