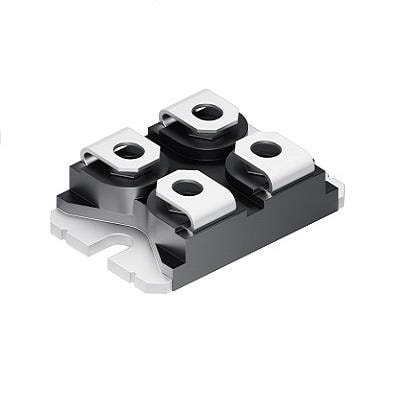

Littelfuse IXFN55N120SK ໂມດູນ MOSFET MOSFET MINIBLOC ສະຫນັກສະຫນອງເປັນເອກະລັກ / SOT-227B

Fall Time: 11 s

Rise Time: 23 s

Technology: SiC

Configuration: Single

Mounting Style: Screw Mount

Vgs - Gate-Source Voltage: - 15 V, + 15 V

Typical Turn-On Delay Time: 24 ns

Typical Turn-Off Delay Time: 41 ns

Id - Continuous Drain Current: 54 A

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 40 C

Rds On - Drain-Source Resistance: 32 mOhms

Vds - Drain-Source Breakdown Voltage: 1.2 kV

Vgs th - Gate-Source Threshold Voltage: 3.6 V
