Litepoint IQgig-IF ລະບົບການທົດສອບສໍາລັບ WiGig

Datasheet

Brochure

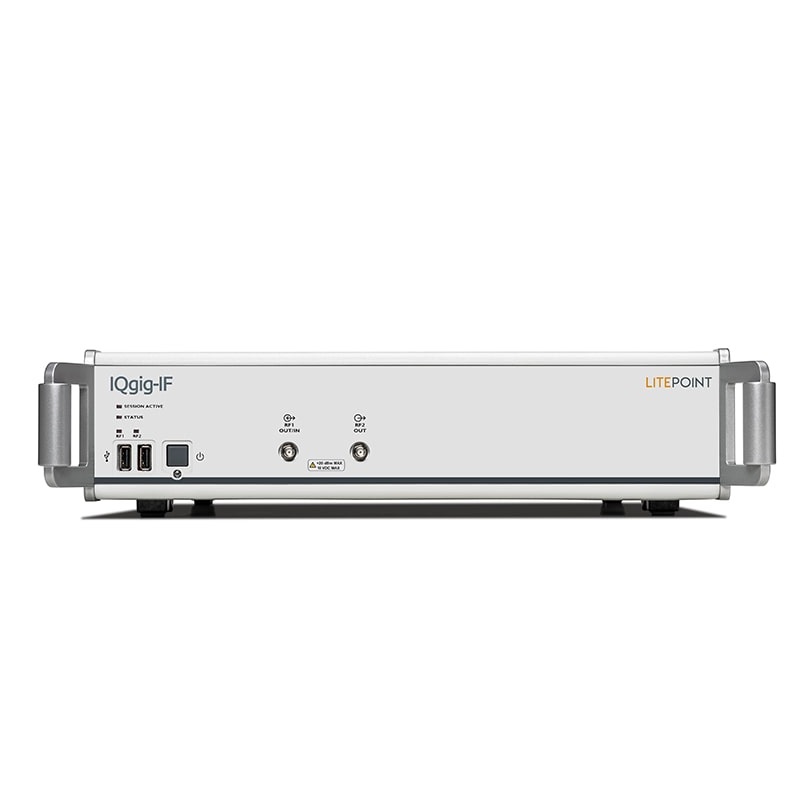

IQgig™-IF is a high-performance physical-layer test solution tailored for conducting tests of 802.11ad and ay (WiGig) chipsets and baseband modules.

When used in conjunction with IQgig-RF, it supports over-the-air (OTA) testing of WiGig RF modules and end-products. The IQgig family products provide total test solution for R&D characterization and high volume manufacturing.

WiGig Test System for IF Frequency Range 4.9 to 19.4 GHz

• Optimally designed for complete frequency coverage of commercial IF interfaces over 4.9 to 19.4 GHz

• Provides better than -35 dB EVM for high-performance measurements

• Ideal for WiGig chipset and baseband module characterization at R&D and DVT

Comprehensive Solution with Support for Testing in 60GHz band

• Together with IQgig-RF, IQgig-IF supports over-the-air (OTA) testing at 60GHz for WiGig RF modules and end products

• Complementary IQgig test solutions provide an easy correlation between IF and RF measurements and ensure a seamless transition from the lab to the factory floor

Turnkey Software Solution Reduces Time to Market

• Automated test software, includes built-in chipset support dramatically reducing software development time

• Provides reliable and accurate test measurements with optimized tester and chipset control

• Offered as a stand-alone program as well as an easy-to-integrate API

WiGig Technology Options

• 802.11 ad

• 802.11ay

• 5G 3GPP NR (Release 15)

• V5GTF (pre-5G)

When & Where to Use the IQgig-IF for Testing?

• R&D lab, DVT, Sampling, Production test environments

• From chipsets to modules, final product characterization or manufacturing lifecycle stages

• For 5G-enabled mmWave mobile or infrastructure devices
