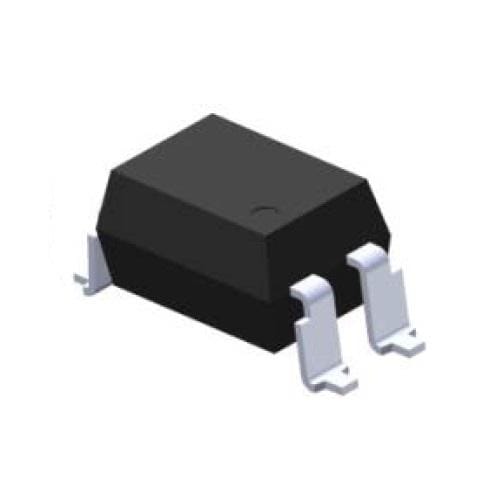

Lite-On LTV-8141S ອອບໂຕຄູເລີຣ໌ອອດພຸດທຣານຊິສເຕີ Optocoupler ການປ້ອນ AC

Width: 6.5 mm

Height: 3.5 mm

Length: 4.6 mm

Fall Time: 250 us

Rise Time: 300 us

Output Type: Photodarlington

Unit Weight: 260 mg

Configuration: 1 Channel

Mounting Style: SMD/SMT

Isolation Voltage: 5000 Vrms

Number of Channels: 1 Channel

If - Forward Current: 50 mA

Vf - Forward Voltage: 1.4 V

Current Transfer Ratio: 600 %

Pd - Power Dissipation: 200 mW

Maximum Collector Current: 80 mA

Current Transfer Ratio - Max: 7500 %

Current Transfer Ratio - Min: 600 %

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 30 C

Maximum Collector Emitter Voltage: 35 V

Maximum Collector Emitter Saturation Voltage: 1 V
