Lisun LEDLS-12 LED Driver Online Tester (6 input parameters)

• The LEDLS-12 has one channel which can test 6 LED Driver input and output parameters at one time parameters at one time).

•The tester can measure the following parameters:

1). Input Parameter Test (AC) in RMS value: U, I, P, PF, Hz, THD

2). Output Parameter Test (AC/DC) in RMS or Average value: U, I, P, PF, Efficiency, Ripple Wave Current

3). The Hardmonic Test: THD and harmonic components test of 2, 3, 5, 7, 9 and 11 (total 50 is option)

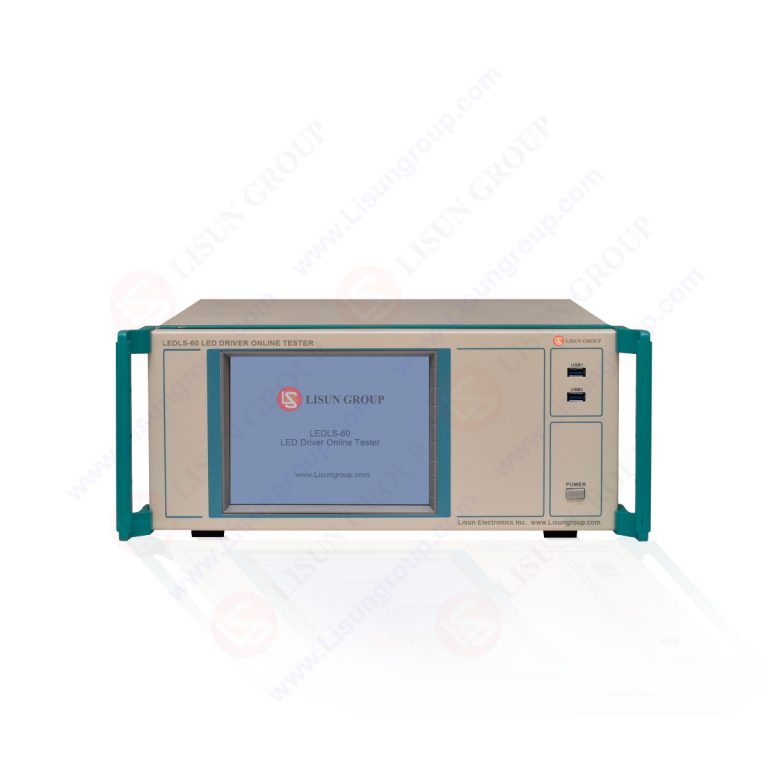

• The LEDLS-60 has 8inch LCD screen to display all of the test parameters, the LEDLS-12 has 12 window

• The test speed is quick: The LEDLS-60 needs only 20s include the LED load light on and test. The LED load light on the test

• They only need to connect six LED DC electric load (LISUN M9822) or LED lamp to do test

• It allows to set upper or lower limit, it will have Noisy/Light warning if the test results were over limit

• The manual trigger and software connect to PC to storage test results are option (extra cost)
