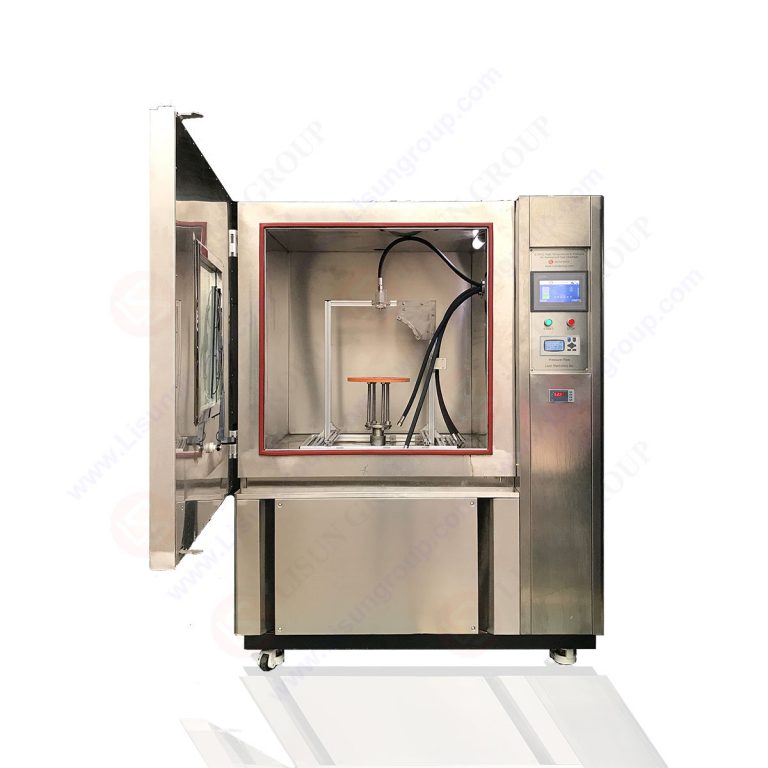

Lisun JL-9K1L ອຸນຫະພູມສູງ Jet Waterproof ຫ້ອງທົດສອບ (8000~10000kPa, 80℃ ±5°C)
ຜູ້ຜະລິດ: Lisun Model: JL-9K1L ທີ່ມາ: China ຮັບປະກັນ: 12 Tháng - ຕິດຕໍ່ພົວພັນ
• Working Chamber: 1000x1000x1000mm
• Test time: 30s (Adjustable)
• Angle of Water Ring: 0°, 30°, 60°, 90° (Other angle is also adjustable)
• Number of blowhole: 4
• Based on a horizontal line, nozzle hole distributed at anticlockwise ±0° ±30° ±60° ±90°with valve on nozzle. Spray sequence is programmable.
• Water Temperature in Tank: 80℃ ±5°C (Adjustable, enhanced temperature and water overflow protection)
• Spraying distance: 100mm~200mm and can be adjustable nozzle distance by manual
• Spraying pressure: 8000~10000kPa (81.5~101.9kg/cm2)
• Electrical high temperature flow meter: Flow is 14~16 L/min
• Rotation speed of testing table: 5-17r/min (Motor drives turbine slow rotating, control speed and adjust to appropriate speed by frequency converter)
• Max sample size: 15kg/Φ400~500mm
