Lisun EN62471-C ລະບົບການທົດສອບຄວາມປອດໄພຂອງລັງສີ optical (200-3000nm)
• Wavelength range: 200-3000nm (EN62471-C)
• Radiance geometry: optics simulating human eye’s retina
• Acceptance aperture: Dia. 7mm for radiance; Dia. 20mm & 7mm for irradiance
• FOV range: 1.5mrad to 110mrad (1.7mrad, 11mrad, 100/110mard) according to exposure duration of radiance measurement; and 100mrad, 1.4rad and 6.28rad for irradiance measurement
• Testing distance: 200mm to 6.0m(optional) with constant FOVs and input aperture
• Image resolution:1600×1200
• Maximum exposure scanning range: 2pi-space
• Calibration: It can be traced to NIM
• Detectors: PMT/InGaAs/Si/PbS
• Imaging radiance meter: scientific grade 16bit CCD camera with TEC,
• Sampling speed of pulse source:20 us to 10 s
• Wavelength accuracy:0.1nm(UV), 0.2nm(VIS)，0.4nm(IR)

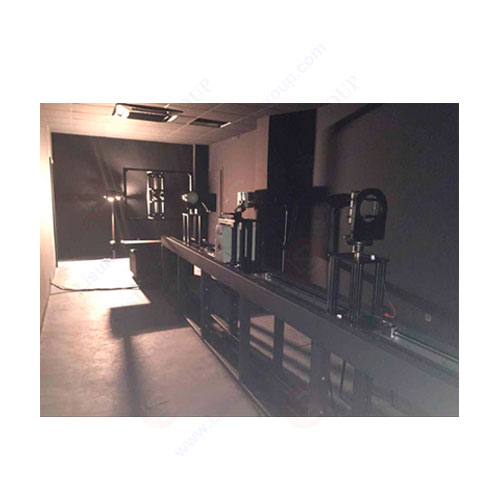

System Configurations
Spectroradiometer and Software
Radiance Meter
Optical Rail and accessories
Standard Lamp for calibrate
Testing instruments cabined
