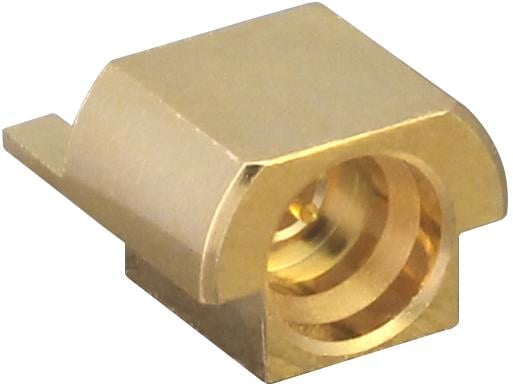

Linx Technologies - TE Connectivity CONSMP024-G ຕົວເຊື່ອມ SMP Jack 50 Ohm PCB Edge Mount

Gender: Plug (Pin)

Polarity: Standard

Frequency: DC to 20 GHz

Impedance: 50 Ohms

Isolation: Non-Isolated

RF Series: SMP

Body Style: Edge Mount

Orientation: Straight

Body Material: Beryllium Copper

Mating Cycles: 100 Cycles

Insertion Loss: 0.47 dB, 1.81 dB

Mounting Style: Edge Launch

Voltage Rating: 320 V

Contact Plating: Gold

Contact Material: Beryllium Copper

Maximum Frequency: 20 GHz

Minimum Frequency: DC

Termination Style: Solder

Coupling Mechanism: Snap-On

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 65 C
