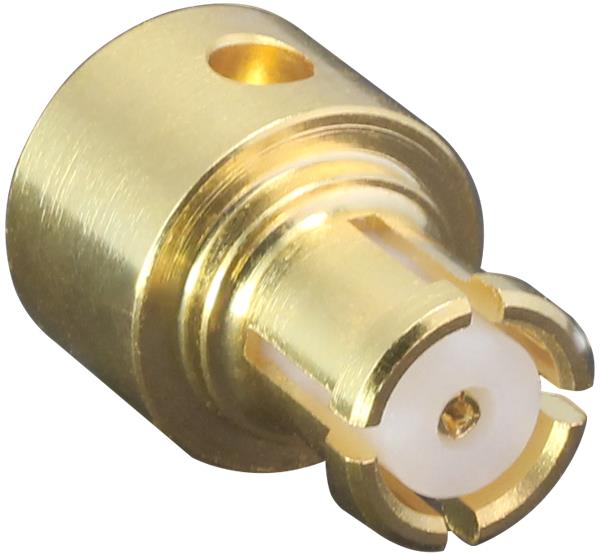

Linx Technologies - TE Connectivity CONSMP005-G ຕົວເຊື່ອມ SMP Jack 50 Ohm Cable

Gender: Jack (Socket)

Polarity: Standard

Frequency: DC to 26.5 GHz

Impedance: 50 Ohms

Isolation: Non-Isolated

RF Series: SMP

Body Style: Right Angle

Cable Type: 0.047 in. Semi-Rigid

Orientation: Right Angle

Body Material: Beryllium Copper

Mating Cycles: 100 Cycles

Insertion Loss: 0.62 dB, 1.29 dB

Mounting Style: Cable Mount / Free Hanging

Voltage Rating: 500 V

Contact Plating: Gold

Contact Material: Beryllium Copper

Maximum Frequency: 26.5 GHz

Minimum Frequency: DC

Termination Style: Solder

Coupling Mechanism: Snap-On

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 65 C
