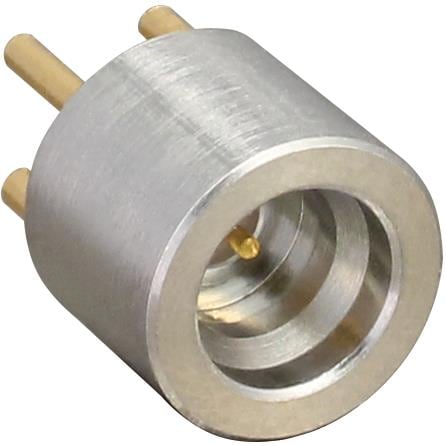

Linx Technologies - TE Connectivity CONSMP001-1 ຕົວເຊື່ອມ SMP Plug 50 Ohm PCB Through Hole

Gender: Plug (Pin)

Polarity: Standard

Frequency: DC to 20 GHz

Impedance: 50 Ohms

Isolation: Non-Isolated

RF Series: SMP

Body Style: Vertical PCB Mount

Orientation: Straight

Body Material: Stainless Steel

Mating Cycles: 100 Cycles

Insertion Loss: 0.12 dB, 1.53 dB

Mounting Style: Through Hole

Voltage Rating: 335 V

Contact Plating: Gold

Contact Material: Beryllium Copper

Maximum Frequency: 20 GHz

Minimum Frequency: DC

Termination Style: Solder

Coupling Mechanism: Snap-On

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 65 C
