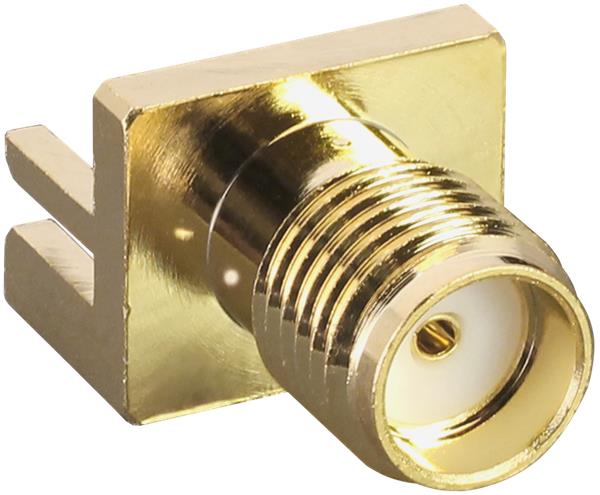

Linx Technologies - TE Connectivity CONSMA020.042-G ຕູ້ເຊື່ອມ PCB SMA Jack 50 Ohm .042 PCB Edge Mount

Gender: Socket (Female)

Polarity: Standard

Impedance: 50 Ohms

RF Series: SMA

Body Style: Edge Mount

Body Finish: Gold

Orientation: Straight

Body Material: Brass

Mating Cycles: 500 Cycle

Insertion Loss: 0.06 dB

Mounting Style: Edge Launch

Voltage Rating: 500 VAC

Contact Plating: Gold

Contact Material: Beryllium Copper

Maximum Frequency: 18 GHz

Minimum Frequency: 0 Hz

Termination Style: Solder

Coupling Mechanism: Threaded

Contact Termination: Solder

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 65 C
