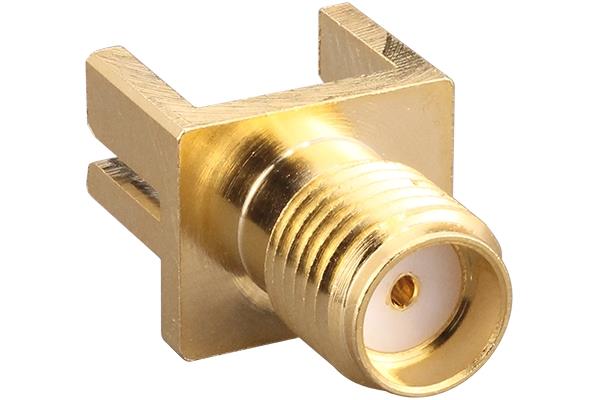

Linx Technologies - TE Connectivity CONSMA020.031-G ຕົວເຊື່ອມ SMA Jack 50 Ohm .031 PCB Edge Mount

Gender: Jack (Socket)

Polarity: Standard

Frequency: 0 Hz to 18 GHz

Impedance: 50 Ohms

RF Series: SMA

Body Style: Edge Mount

Body Finish: Gold

Orientation: Straight

Unit Weight: 6.419 g

Body Material: Brass

Mounting Style: Edge Launch

Voltage Rating: 1 kV

Board Thickness: 0.031 in

Contact Plating: Gold

Contact Material: Beryllium Copper

Maximum Frequency: 18 GHz

Minimum Frequency: DC

Termination Style: Solder

Coupling Mechanism: Threaded

Insulation Resistance: 5 GOhms

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 65 C
