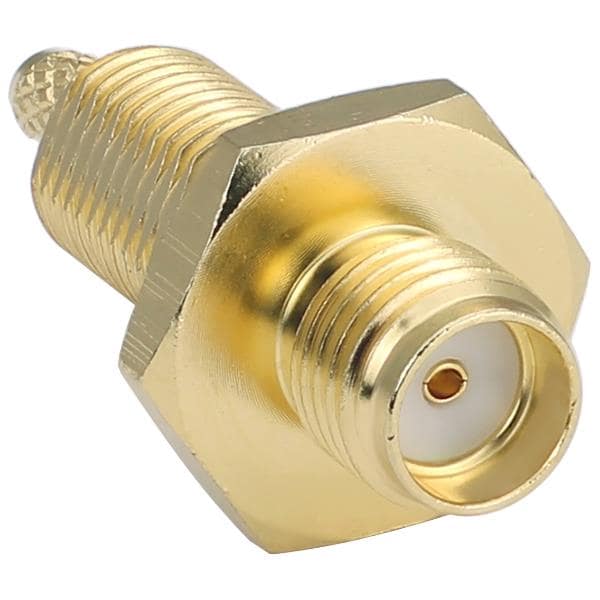

Linx Technologies - TE Connectivity CONSMA015-R178-G ຕົວເຊື່ອມ SMA Fml Blkhd FMnt Crimp, O-Ring, RG178

Gender: Jack (Socket)

Polarity: Standard

Impedance: 50 Ohms

RF Series: SMA

Body Style: Bulkhead

Cable Type: RG-178

Body Finish: Gold

Orientation: Straight

Unit Weight: 8.352 g

REACH - SVHC: Details

Body Material: Brass

Mating Cycles: 500 Cycle

Mounting Style: Bulkhead

Voltage Rating: 1 kV

Contact Plating: Gold

Contact Material: Beryllium Copper

Maximum Frequency: 6 GHz

Termination Style: Crimp

Coupling Mechanism: Threaded

Insulation Resistance: 5 GOhms

Maximum Operating Temperature: + 155 C

Minimum Operating Temperature: - 55 C
