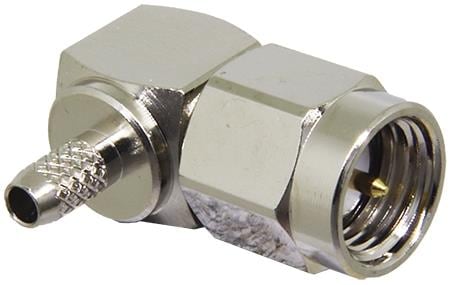

Linx Technologies - TE Connectivity CONSMA012 ຕູ້ຕໍ່ SMA Mal R Angle Cbl End Crimp-RG-174 Cbl

Gender: Plug (Pin)

Polarity: Standard

Impedance: 50 Ohms

RF Series: SMA

Body Style: Right Angle

Cable Type: RG-174

Body Finish: Nickel

Orientation: Right Angle

Unit Weight: 6.398 g

REACH - SVHC: Details

Body Material: Brass

Mating Cycles: 500 Min

Insertion Loss: 0.06 dB max

Mounting Style: Cable Mount / Free Hanging

Voltage Rating: 335 VRMS

Contact Plating: Gold

Contact Material: Brass

Maximum Frequency: 12.4 GHz

Termination Style: Crimp

Coupling Mechanism: Threaded

Contact Termination: Solder

Insulation Resistance: 5 GOhms

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 65 C
