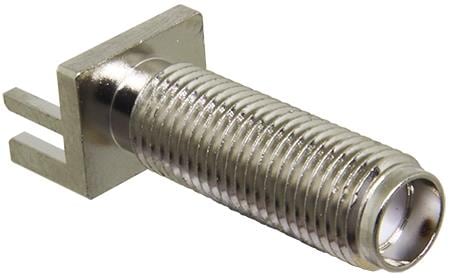

Linx Technologies - TE Connectivity CONSMA003.062-L ຕົວເຊື່ອມ SMA Fml Edge Mount 0.062" PCB, Extd.

Gender: Jack (Socket)

Polarity: Standard

Impedance: 50 Ohms

RF Series: SMA

Body Style: Straight

Body Finish: Nickel

Orientation: Straight

Unit Weight: 226.800 g

Body Material: Brass

Mating Cycles: 500 Min

Insertion Loss: 0.04 dB max

Mounting Style: Edge Launch

Contact Plating: Gold

Contact Material: Beryllium Copper

Maximum Frequency: 18 GHz

Termination Style: Solder

Coupling Mechanism: Threaded

Contact Termination: Solder

Insulation Resistance: 5 GOhms

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 65 C
