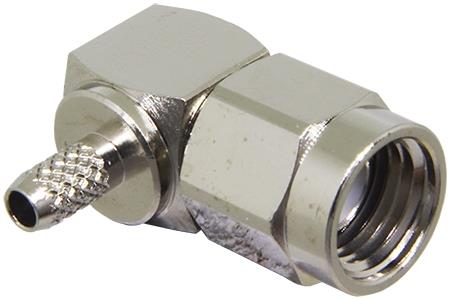

Linx Technologies - TE Connectivity CONREVSMA012 ຕົວເຊື່ອມ RPSMA ຜູ້ຊາຍ RAng Cbl End Crimp - RG-174

Gender: Plug (Socket)

Polarity: Reverse

Impedance: 50 Ohms

RF Series: RP-SMA

Body Style: Right Angle

Cable Type: RG-174

Body Finish: Nickel

Orientation: Right Angle

REACH - SVHC: Details

Body Material: Brass

Mating Cycles: 500 Min

Insertion Loss: 0.06 dB max

Mounting Style: Cable Mount / Free Hanging

Voltage Rating: 335 VRMS

Contact Plating: Gold

Contact Material: Beryllium Copper

Maximum Frequency: 18 GHz

Termination Style: Solder

Coupling Mechanism: Threaded

Contact Termination: Solder

Insulation Resistance: 5 GOhms

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 65 C
