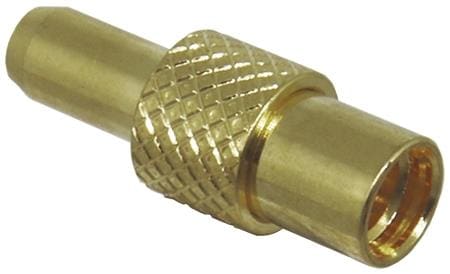

Linx Technologies - TE Connectivity CONMMCX011-R178 ຕົວເຊື່ອມ MMCX Fml Cable End Crimp - RG-178 Cable

Gender: Jack (Socket)

Polarity: Standard

Impedance: 50 Ohms

RF Series: MMCX

Body Style: Straight

Cable Type: RG-178

Body Finish: Nickel

Orientation: Straight

REACH - SVHC: Details

Body Material: Brass

Mating Cycles: 500 Min

Insertion Loss: 0.2 dB max at 1 GHz

Mounting Style: Cable Mount / Free Hanging

Voltage Rating: 170 VRMS

Contact Plating: Gold

Contact Material: Beryllium Copper

Maximum Frequency: 6 GHz

Termination Style: Crimp

Insulation Resistance: 1 GOhms

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 65 C
