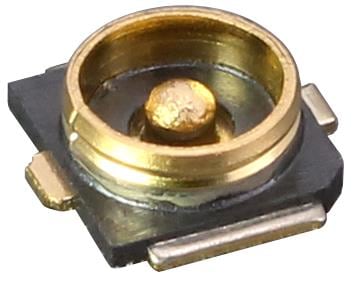

Linx Technologies - TE Connectivity CONMHF4-SMD-G-T ຕູ້ຕໍ່ PCB MHF4 Connector Receptacle, ຂວດຊາຍ 50 Ohm ຕິດຕັ້ງພາຍນອກດ້ວຍການບຸນ

Gender: Jack (Socket)

Polarity: Standard

Frequency: 0 Hz to 6 GHz

Impedance: 50 Ohms

RF Series: MHF4

Body Style: Vertical PCB Mount

Orientation: Straight

REACH - SVHC: Details

Mating Cycles: 30 Cycle

Insertion Loss: 1.57 dB

Mounting Style: PCB Mount

Voltage Rating: 60 V

Contact Plating: Gold

Contact Material: Brass

Maximum Frequency: 6 GHz

Minimum Frequency: 0 Hz

Termination Style: Solder

Coupling Mechanism: Snap-On

Contact Termination: Solder

Insulation Resistance: 100 MOhms

Maximum Operating Temperature: + 90 C

Minimum Operating Temperature: - 40 C
