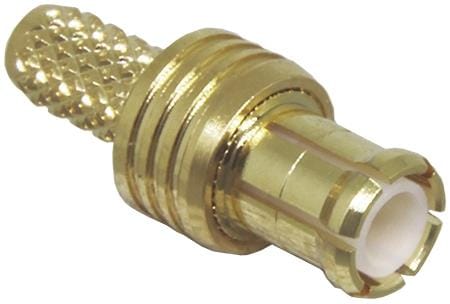

Linx Technologies - TE Connectivity CONMCX007 ຕົວເຊື່ອມ MCX ຊາຍ ສິ້ນສາຍຄອມພວນ Crimp - ສາຍ RG-174

Gender: Plug (Pin)

Polarity: Standard

Impedance: 50 Ohms

RF Series: MCX

Body Style: Straight

Cable Type: RG-174

Body Finish: Nickel

Orientation: Straight

Unit Weight: 1.647 g

REACH - SVHC: Details

Body Material: Brass

Mating Cycles: 500 Min

Insertion Loss: 0.1 dB max

Mounting Style: Cable Mount / Free Hanging

Contact Plating: Gold

Contact Material: Brass

Maximum Frequency: 6 GHz

Termination Style: Crimp

Contact Termination: Solder

Insulation Resistance: 1 GOhms

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 65 C
