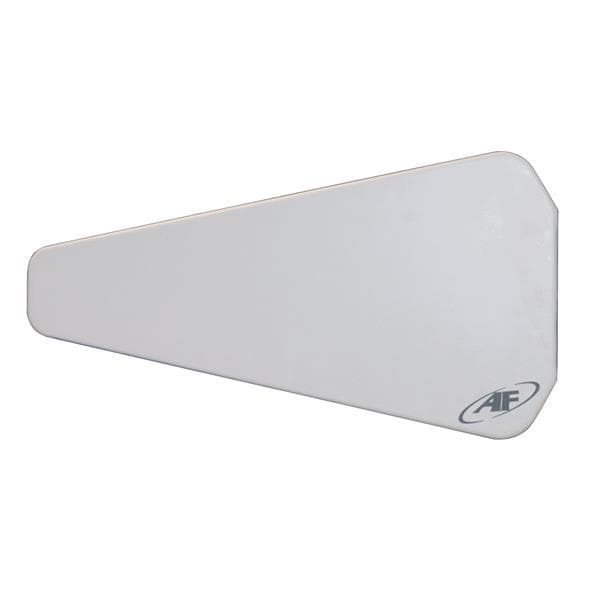

Linx Technologies - TE Connectivity ANT-DB1-LP-RM-01-N ອະນຕີນາພາສິບະສະຕິບ Log Periodic Dipole Tri-Band

Gain: 8.5 dBi, 9.0 dBi, 9.0 dBi

VSWR: 1.5

Style: Directional

Width: 210 mm

Height: 36.5 mm

Length: 395 mm

Bandwidth: 136 MHz, 460 MHz, 80Hz

Impedance: 50 Ohms

Cable Type: 165.1 mm Coax

Wavelength: 1/2 Wave

Application: Long Distance Directional Communication

Unit Weight: 1.357 kg

Cable Length: 165 mm

Polarization: Linear

Power Rating: 100 W

Mounting Style: Bracket Mount

Number of Bands: 3 Band

Center Frequency: 892 MHz, 1.94 GHz, 2.45 GHz

Mechanical Style: Log Periodic

Maximum Frequency: 2.48 GHz

Minimum Frequency: 824 MHz

Termination Style: Connector

Protocol - Sub GHz: RFID, ISM

Antenna Connector Type: N Female

Protocol - WiFi - 802.11: LoRaWAN, Sigfox

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE), GSM, UMTS
