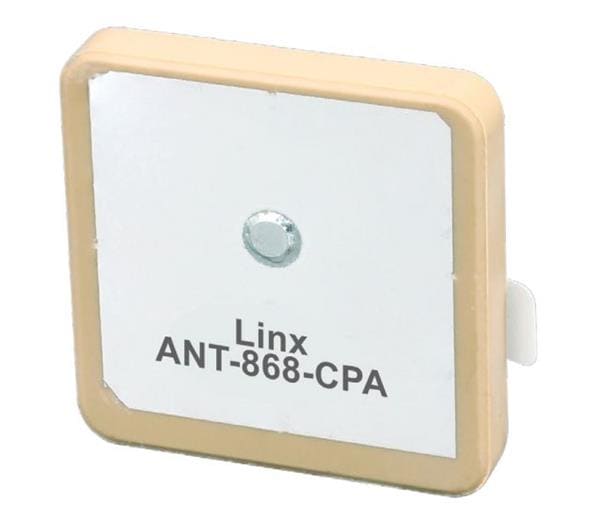

Linx Technologies - TE Connectivity ANT-868-CPA ແນວຮັບສະສົມສະຕິກເຊີບແຕັດ 25mm Sq 868MHz Adh

Gain: 1.4 dBi

VSWR: 9.5

Style: Ceramic

Width: 25 mm

Height: 4 mm

Length: 25 mm

Impedance: 50 Ohms

Wavelength: 1/4 Wave

Application: Low Power Wide Area Applications, Remote Control, Monitoring, Sensing, Smart Home Networking, Handheld Devices

Unit Weight: 18.198 g

Polarization: RHCP

Power Rating: 8 W

Mounting Style: PCB Mount

Electrical Type: Embedded

Number of Bands: 1 Band

Center Frequency: 868 MHz

Mechanical Style: Patch

Ground Plane Size: 70 mm x 70 mm

Maximum Frequency: 876 MHz

Minimum Frequency: 863 MHz

Termination Style: Connector

Protocol - Sub GHz: RFID

Antenna Connector Type: Pin

Protocol - WiFi - 802.11: LoRaWAN, Sigfox

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE), GSM, UMTS
