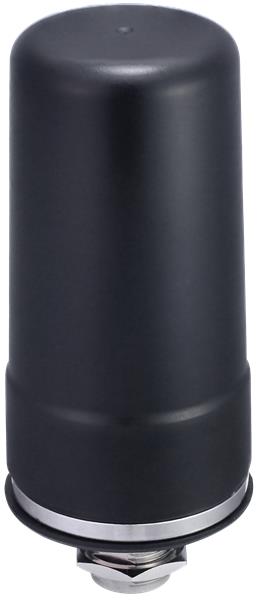

Linx Technologies - TE Connectivity ANT-8/9-SPNF2 ແນວຮັບສະສົມສະຫນາມ 868/915 LPWA Dome IP67 N Jack

Gain: - 0.1 dBi, - 0.2 dBi

VSWR: 1.7, 2.1

Style: Stubby

Length: 83.1 mm

Diameter: 42 mm

IP Rating: IP67

Impedance: 50 Ohms

Wavelength: 1/2 Wave

Application: Low Power Wide Area Applications, Remote Control, Monitoring, Sensing, IoT, ISM

Polarization: Linear

Power Rating: 20 W

Mounting Style: Direct / Permanent Mount

Electrical Type: Dipole

Number of Bands: 2 Band

Center Frequency: 868 MHz, 915 MHz

Mechanical Style: Whip

Ground Plane Size: 300 mm x 300 mm

Maximum Frequency: 930 MHz

Minimum Frequency: 862 MHz

Termination Style: Connector

Protocol - Sub GHz: RFID, IoT, ISM

Antenna Connector Type: N Female

Protocol - WiFi - 802.11: 802.11 ah, LoRaWAN, Sigfox, WiFi HaLow

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE), GSM, UMTS
