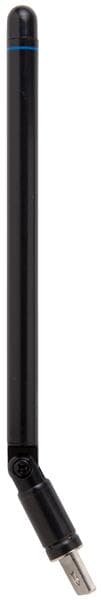

Linx Technologies - TE Connectivity ANT-418-PW-RA ແນວຮັບສະສົມພະຍາຍາມຖືກຕິດຕັ້ງຖືກປ່ຽນມຸມ 1/4 ເຄັ່ງຄວາມຍາວ Whip 418MHz

Gain: 2.0 dBi

VSWR: 2

Style: Tilt/Swivel

Width: 21 mm

Length: 131.5 mm

Diameter: 7 mm

Bandwidth: 18 MHz

Impedance: 50 Ohms

Wavelength: 1/4 Wave

Application: ISM, Remote Control, Alarms, Security Systems

For Use With: 410 MHz, LTE Band 87, LTE Band 88, Personal Mobile Radio - PMR

Polarization: Linear

REACH - SVHC: Details

Mounting Style: Screw Mount

Electrical Type: Monopole

Number of Bands: 1 Band

Center Frequency: 418 MHz

Mechanical Style: Whip

Ground Plane Size: 62.23 mm x 100.33 mm

Maximum Frequency: 427 MHz

Minimum Frequency: 409 MHz

Termination Style: Screw

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: - 20 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE), GSM
