Gain: 5.5 dBi
VSWR: 2.7

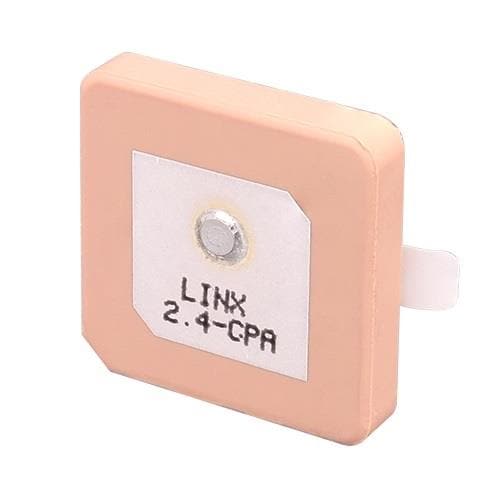

Style: Ceramic
Width: 20 mm
Height: 4 mm
Length: 20 mm
Impedance: 50 Ohms
Wavelength: 1/4 Wave
Application: 802.15.4, Bluetooth, ISM, WiFi
Unit Weight: 8.286 g
For Use With: Gateways, IoT Devices, Sensing and Remote Monitoring
Polarization: RHCP
Power Rating: 8 W
Mounting Style: PCB Mount
Electrical Type: Embedded
Number of Bands: 1 Band
Center Frequency: 2.45 GHz
Mechanical Style: Patch
Ground Plane Size: 40 mm x 40 mm
Maximum Frequency: 2.5 GHz
Minimum Frequency: 2.4 GHz
Termination Style: Pin
Protocol - Sub GHz: ISM
Protocol - WiFi - 802.11: WiFi
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE
Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee), 802.16
