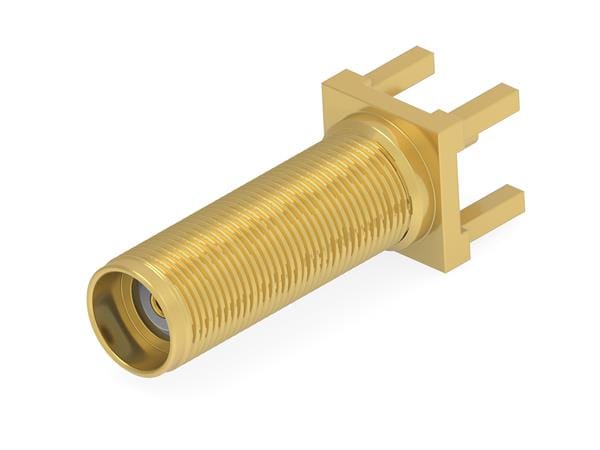

Linx Technologies - TE Connectivity 2484639-1 ຕູ້ຕໍ່ສາຍ Coaxial Connectors SMA Jack Str PCB Thru Hole BHD 18 GHz

Gender: Jack (Socket)

Polarity: Standard

Frequency: DC to 18 GHz

Impedance: 50 Ohms

Isolation: Non-Isolated

RF Series: SMA

Body Style: Straight

Body Finish: Gold

Orientation: Right Angle

Body Material: Brass

Mating Cycles: 500 Cycles

Mounting Type: Board Mount

Mounting Style: Through Hole

Voltage Rating: 335 V

Contact Plating: Gold

Contact Material: Beryllium Copper

Maximum Frequency: 18 GHz

Minimum Frequency: DC

Termination Style: Solder

Coupling Mechanism: Threaded

Insulation Resistance: 5 kOhms

Maximum Operating Temperature: + 165 C

Minimum Operating Temperature: - 65 C
