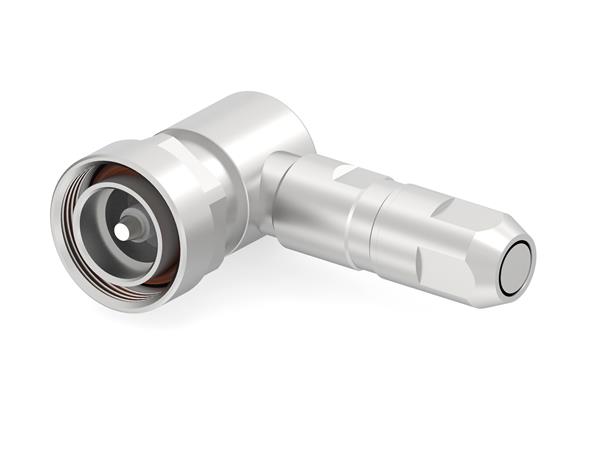

Linx Technologies - TE Connectivity 2441522-1 ຕົວເຊື່ອມ RF 7/16 ຜູ້ຊາຍ (ປລັກ) R/A ສໍາລັບ RG-213/RG-214/RG-393 ສາຍສັນ

Gender: Pin (Male)

Polarity: Standard

Impedance: 50 Ohms

Isolation: Non-Isolated

RF Series: 7/16

Body Style: Right Angle

Cable Type: RG-213, RG-214, RG-393

Body Finish: Copper

Orientation: Right Angle

Body Material: Brass

Mating Cycles: 500 Cycles

Mounting Style: Cable Mount / Free Hanging

Voltage Rating: 1700 Vrms

Contact Plating: Copper, Silver

Contact Material: Beryllium Copper, Brass

Maximum Frequency: 1 GHz

Minimum Frequency: DC

Termination Style: Twist On

Insulation Resistance: 10 GOhms

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
